Part Number

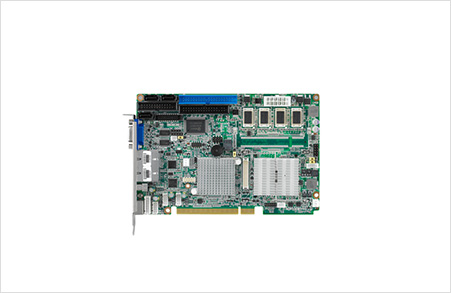

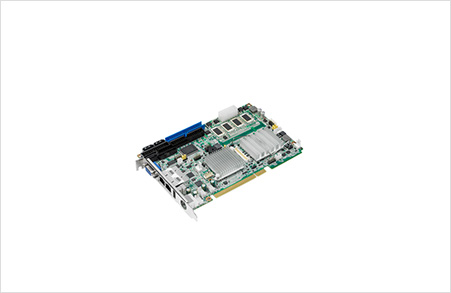

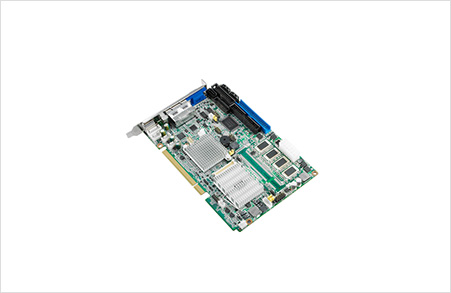

PCI-7031D-S6A1E

Form Factor

Form Factor

PICMG1.0 Half-Size SBC

Processor System

CPU

Intel Atom D510

CPU TDP

Up to 13 W

Frequency

Up to 1.66 GHz

Core Number

2

L2 Cache

1 MB

BIOS

AMI 16 MBit

Chipset

Intel ICH8M

Integrated Graphics

Yes

Memory

Technology

DDR2 667 MHz

Capacity

Up to 2 GB

Socket

1 x 200-pin SODIMM

Display

Controller

Intel Embedded Gen3.5+ GFX Core technology Integrated

Graphic Memory

Share with system memory up to 224 MB

Multiple Display

Dual

Display Interface

VGA: Up to 2048 x 1563  LVDS: 18 bit, Up to 1366 x 768/ 1280 x 800

Expansion Interface

PCI

1

Ethernet

Controller

LAN1: Intel 82579V  LAN2: Intel 82583V

Speed

10/100/1000 Mbps

Connector

2 x RJ45

WatchDog Timer

Output

System Reset

Interval

Programmable 1~255 sec

I/O

COM Port

2 (2 x RS232)

Compact Flash

1 x Type I/II Socket

Floppy

1

IDE

1

LPT

1

PS/2 Keyboard/Mouse

1

SATA

3 x SATA II

USB2.0

6

Rear I/O Interface

USB2.0

1

PS/2

1 (for mouse and keyboard, a Y cable is included in the package)

Ethernet

2

VGA

1

Power Requirement

Voltage

+12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V/ Total

Current

0.31 A/2.19 A/0 A/0.2 A/0 A/0 A/ 14.87 W

Environment

Operating-Temperature

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

Non-Operational Temperature

-40~ 85° C and 60° C @ 95% RH Non-Condensing

Physical Characteristics

Dimensions (LxW)

185 x 122 mm (7.3" x 4.8")

Certification

EMC

CE, FCC

Management Solution

Software

SUSIAccess 2.0
