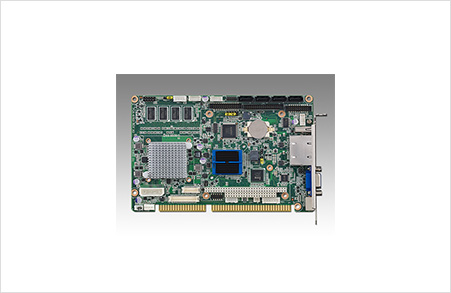

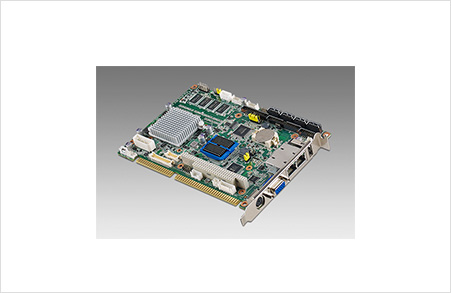

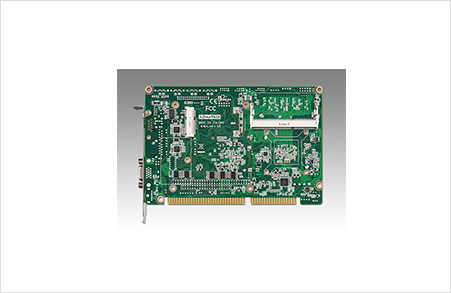

PCA-6763
Ultra low power, AMD dual-core Accelerated
Processing Unit T40E or fanless T16R
DDR3 1066 memory onboard 1GB+ DDR3 1066 SO-DIMM socket 4GB
Dual independent display
Up to 2 GbE LAN supported
4 SATA 3.0 (600 MB/s) and 1 m-SATA (600 MB/s)
Legacy I/O, such as FDD/ PC/104/ COM/ LPT supported
Optional module for 4 RS-422/485 or 4 RS-232, TPM and HD audio
規(guī)格

Part Number

PCA-6763G2-00A1E

PCA-6763VG-00A1E

PCA-6763VG-S0A1E

Form Factor

Form Factor

PICMG1.0 Half-Size SBC

PICMG1.0 Half-Size SBC

PICMG1.0 Half-Size SBC

Processor System

CPU

AMD G-series T16R

AMD G-series T16R

AMD G-series T40E

CPU TDP

Up to 4.5 W

Up to 4.5 W

Up to 6.4 W

Frequency

Up to 615 MHz

Up to 615 MHz

Up to 1GHz

Core Number

1

1

2

L2 Cache

512KB

512KB

512KB

Chipset

AMD A55E

AMD A55E

AMD A55E

Integrated Graphics

Yes

Yes

Yes

Memory

Technology

DDR3 1066 MHz

DDR3 1066 MHz

DDR3 1066 MHz

Capacity

Up to 4 GB

Up to 4 GB

Up to 4 GB

Onboard Memory

1 G

1 G

1 G

Display

Controller

AMD G-series T16R

AMD G-series T16R

AMD G-series T16R

Graphic Memory

Share with system memory up to 384 MB

Share with system memory up to 384 MB

Share with system memory up to 384 MB

Expansion Interface

ISA

Full 16-bit ISA interface

Full 16-bit ISA interface

Full 16-bit ISA interface

Ethernet

Controller

LAN1: Realtek RTL8111E-VL-CG, LAN2: Realtek RTL8111E-VL-CG

LAN1: Realtek RTL8111E-VL-CG

LAN1: Realtek RTL8111E-VL-CG

I/O

COM Port

2 x RS232

2 x RS232

2 x RS232

SATA

4 x SATA III

4 x SATA III

4 x SATA III

Rear I/O Interface

USB2.0

1

-

-

Power Requirement

Voltage

+12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V/ Total

+12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V/ Total

+12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V/ Total

Current

0.17 A/1.87 A/0 A/ 0 A/0 A/0 A

0.17 A/1.87 A/0 A/ 0 A/0 A/0 A

0.17 A/1.87 A/0 A/ 0 A/0 A/0 A

Environment

Operating-Temperature

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

Non-Operational Temperature

-40~ 85° C and 60° C @ 95% RH Non-Condensing

-40~ 85° C and 60° C @ 95% RH Non-Condensing

-40~ 85° C and 60° C @ 95% RH Non-Condensing

Physical Characteristics

Dimensions (LxW)

185 x 122 mm (7.3" x 4.8")

185 x 122 mm (7.3" x 4.8")

185 x 122 mm (7.3" x 4.8")

Certification

EMC

CE, FCC

CE, FCC

CE, FCC
