Part Number

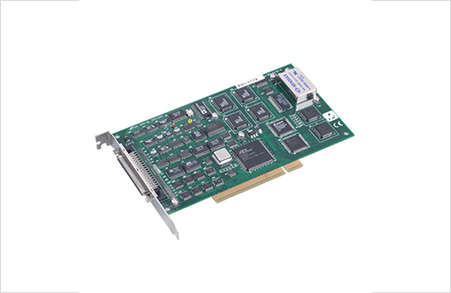

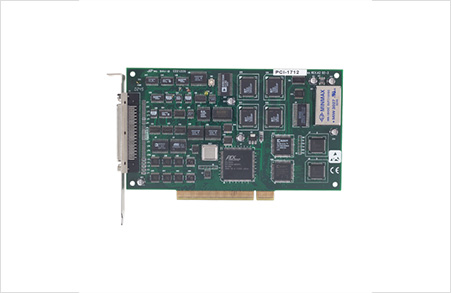

PCI-1712-AE

PCI-1712L-AE

General

Power Consumption

Typical: 5 V @ 850 mA; Max.: 5 V @ 1 A

Typical: 5 V @ 850 mA; Max.: 5 V @ 1 A

OS Support

32-bit/64-bit Windows 7/8/10, and Linux

32-bit/64-bit Windows 7/8/10, and Linux

Dimensions

175 x 100 mm (6.9" x 3.9")

175 x 100 mm (6.9" x 3.9")

Bus

PCI

PCI

I/O Connectors

1 x 68-pin SCSI female connector

1 x 68-pin SCSI female connector

Operating Temperature

0 ~ 60°C (32 ~ 140° F)

0 ~ 60°C (32 ~ 140° F)

Programming Language

C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

Triggering

8 bits Analog / Digital

8 bits Analog / Digital

Analog Input

Sampling Rates(S/s)

1 M

1 M

Bipolar Inputs (V)

±10, 5, 2.5, 1.25, 0.625

±10, 5, 2.5, 1.25, 0.625

Channels

16

16

Type

Scan

Scan

Unipolar Input (V)

0~10, 0~5, 0~0.25, 0~1.25

0~10, 0~5, 0~0.25, 0~1.25

Resolution(Bits)

12

12

Input Impedance

100 MO

100 MO

Trigger Mode

Start trigger, Delay to Start trigger, Stop trigger, Delay to Stop trigger

Start trigger, Delay to Start trigger, Stop trigger, Delay to Stop trigger

Overvoltage Protection

30 Vp-p

30 Vp-p

Analog Output

Resolution(Bits)

12

-

Channels

2

-

Output Ranges

0 ~ +10 V, 0 ~ +5 V -5V ~ +5 V -10 V ~ +10 V

-

Update Rate(S/s)

1 M

-

Timer/Counter

Resolution

16 bits

16 bits

Channels

3

3

Max. Input Frequency

10 MHz

10 MHz

TTL DI/O

Input Channels

16 (shared)

16 (shared)

Output Channels

16 (shared)

16 (shared)
