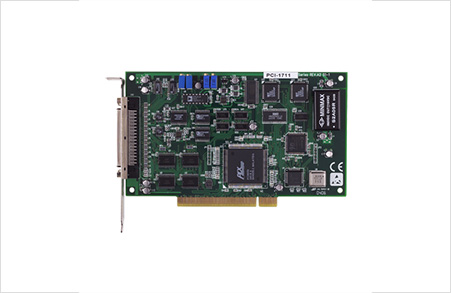

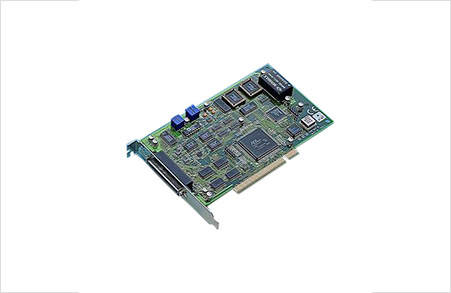

PCI-1711
12位 A/D轉換器, 采樣速率可達 100kHz
16通道單端模擬輸入
16路單端模擬量輸入
12位A/D轉換器，采樣率達100kHz
板載1K 采樣 FIFO 緩沖器
節約型設計，無模擬輸出
每個輸入通道的增益可編程
可編程增益
自動通道/增益掃描
自動通道/增益掃描
先進先出FIFO內存（1024樣本）
2通道12位模擬輸出（限PCI-1711U）
16通道數字輸入和16通道數字輸出
內建可編程計數器
規格

Part Number

PCI-1711U-CE

PCI-1711UL-CE

General

Power Consumption

Typical: 5 V @ 850 mA; Max.: 5 V @ 1 A

Typical: 5 V @ 850 mA; Max.: 5 V @ 1 A

OS Support

32-bit/64-bit Windows 7/8/10, and Linux

32-bit/64-bit Windows 7/8/10, and Linux

Dimensions

175 x 100 mm (6.9" x 3.9")

175 x 100 mm (6.9" x 3.9")

Bus

PCI

PCI

I/O Connectors

1 x 68-pin SCSI female connector

1 x 68-pin SCSI female connector

Operating Temperature

0 ~ 60°C (32 ~ 140° F)

0 ~ 60°C (32 ~ 140° F)

Programming Language

C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

Analog Input

Sampling Rates(S/s)

100 K

100 K

Bipolar Inputs (V)

±10, 5, 2.5, 1.25, 0.625

±10, 5, 2.5, 1.25, 0.625

Channels

16

16

Type

Scan

Scan

Resolution(Bits)

12

12

Input Impedance

300 MO

300 MO

Overvoltage Protection

30 Vp-p

30 Vp-p

Analog Output

Resolution(Bits)

12

-

Channels

2

-

Output Ranges

0 ~ +10 V, 0 ~ +5 V

-

Update Rate(S/s)

Static

-

Timer/Counter

Resolution

16 bits

16 bits

Channels

1

1

Max. Input Frequency

10 MHz

10 MHz

TTL DI/O

Input Channels

16

16

Output Channels

16

16
