Part Number

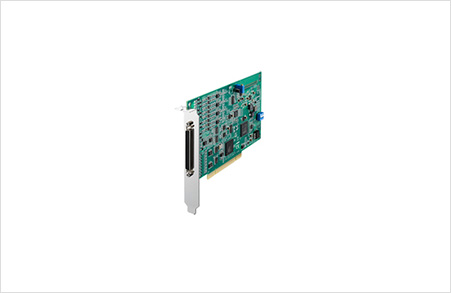

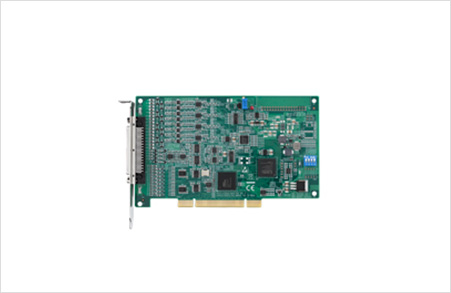

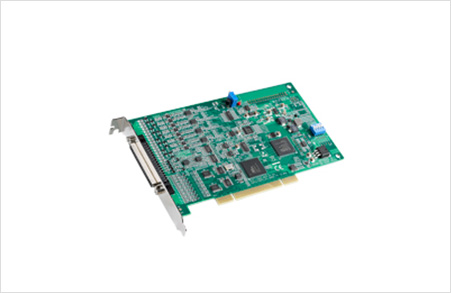

PCI-1706U-AE

General

Power Consumption

Typical: 5 V @ 850 mA; Max.: 5 V @ 1 A

OS Support

32-bit/64-bit Windows 7/8/10, and Linux

Dimensions

175 x 100 mm (6.9" x 3.9")

Bus

PCI

I/O Connectors

1 x 68-pin SCSI female connector

Operating Temperature

0 ~ 60°C (32 ~ 140° F)

Programming Language

C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

Analog Input

Sampling Rates(S/s)

250 K

Bipolar Inputs (V)

±10, 5, 2.5, 1.25

Channels

8

Type

Simultaneous Sample

Resolution(Bits)

16

Input Impedance

18 MO

Trigger Mode

Delay to Start, Delay to Stop

Analog Output

Resolution(Bits)

12

Channels

2

Output Ranges

0 ~ +10 V, 0 ~ +5 V -5V ~ +5 V -10 V ~ +10 V,0 ~ 20 mA, 0 ~ 24 mA, 4 ~ 20 mA

Update Rate(S/s)

30 K

Timer/Counter

Resolution

32 bits

Channels

2

Max. Input Frequency

10 MHz

TTL DI/O

Input Channels

16 (shared)

Output Channels

16 (shared)
