Let me take you into the world of industrial automation
中文版   |   English
ACP-4340
支持PICMG后面板，最多帶有14個插槽或1個ATX/Micro-ATX母板

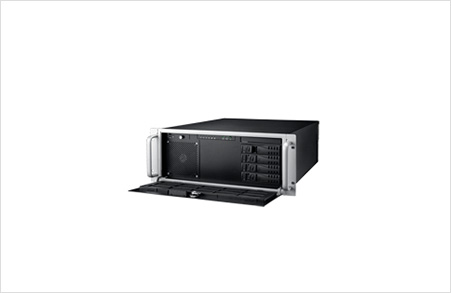

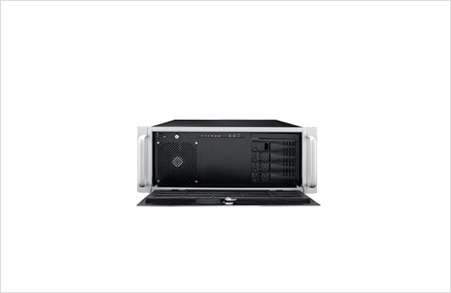

防振磁盤驅動托盤，支持4個熱插拔3.5"和2.5" SAS/SATA驅動盤，1個薄型光驅，和1個2.5" 內盤
雙前置USB 3.0端口
前置訪問系統風扇，無頂蓋，易于維護
LED指示燈和警報提醒，支持系統故障檢測
智能風扇速率控制
內置入侵開關功能
內置智能系統模塊，支持系統風扇控制和遠程管理
規格

Part Number

ACP-4340BP-50ZE

ACP-4340BP-70ZE

ACP-4340MB-50RE

ACP-4340MB-50ZE

ACP-4340MB-70ZE

Form Factor

Form Factor

4U Rackmount

4U Rackmount

4U Rackmount

4U Rackmount

4U Rackmount

Cooling

Air Filter

Yes

Yes

Yes

Yes

Yes

Fan

1 (12 cm /74 CFM) + 1 (8 cm/56 CFM) for SAS/SATA storage unit

1 (12 cm /74 CFM) + 1 (8 cm/56 CFM) for SAS/SATA storage unit

1 (12 cm /74 CFM) + 1 (8 cm/56 CFM) for SAS/SATA storage unit

1 (12 cm /74 CFM) + 1 (8 cm/56 CFM) for SAS/SATA storage unit

1 (12 cm /74 CFM) + 1 (8 cm/56 CFM) for SAS/SATA storage unit

Front I/O Interface

USB3.0

2

2

2

2

2

Environment

Operating-Temperature

0 ~ 45

0 ~ 45

0 ~ 45

0 ~ 45

0 ~ 45

Operating Shock

10 G (with 11 ms duration, half sine wave)

10 G (with 11 ms duration, half sine wave)

10 G (with 11 ms duration, half sine wave)

10 G (with 11 ms duration, half sine wave)

10 G (with 11 ms duration, half sine wave)

Non-Operational Temperature

-20 ~ 60° C (-4 ~ 140° F)

-20 ~ 60° C (-4 ~ 140° F)

-20 ~ 60° C (-4 ~ 140° F)

-20 ~ 60° C (-4 ~ 140° F)

-20 ~ 60° C (-4 ~ 140° F)

Operating Humidity

10 ~ 85% @ 40° C, non-condensing

10 ~ 85% @ 40° C, non-condensing

10 ~ 85% @ 40° C, non-condensing

10 ~ 85% @ 40° C, non-condensing

10 ~ 85% @ 40° C, non-condensing

Non-Operating Humidity

10 ~ 95% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

Operating Vibration (5 ~ 500 Hz)

1 Grms

1 Grms

1 Grms

1 Grms

1 Grms

Non-Operating Vibration (5 ~ 500 Hz)

2 G

2 G

2 G

2 G

2 G

Physical Characteristics

Weight

12.5 kg (27.5 lb )

12.5 kg (27.5 lb )

12.5 kg (27.5 lb )

12.5 kg (27.5 lb )

12.5 kg (27.5 lb )

Dimensions (W x H x D)

482 x 177 x 479 mm (19" x 7" x 18.9")

482 x 177 x 479 mm (19" x 7" x 18.9")

482 x 177 x 479 mm (19" x 7" x 18.9")

482 x 177 x 479 mm (19" x 7" x 18.9")

482 x 177 x 479 mm (19" x 7" x 18.9")

Disk Drive Bay

Slim ODD

1

1

1

1

1

2.5" Internal

1

1

1

1

1

Hot-swap Drive Bay

4 (compatible with 3.5" or 2.5" devices)

4 (compatible with 3.5" or 2.5" devices)

4 (compatible with 3.5" or 2.5" devices)

4 (compatible with 3.5" or 2.5" devices)

4 (compatible with 3.5" or 2.5" devices)

Miscellaneous

LED Indicators

Power, HDD, temperature, fan, LAN1, and LAN2

Power, HDD, temperature, fan, LAN1, and LAN2

Power, HDD, temperature, fan, LAN1, and LAN2

Power, HDD, temperature, fan, LAN1, and LAN2

Power, HDD, temperature, fan, LAN1, and LAN2

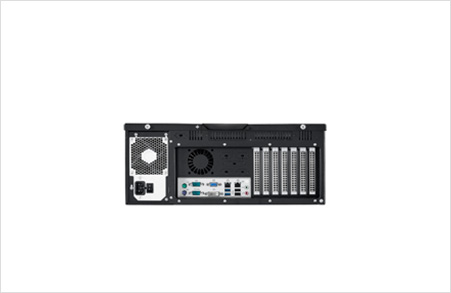

Rear Panel

One 9-pin D-Sub opening

One 9-pin D-Sub opening

One 9-pin D-Sub opening

One 9-pin D-Sub opening

One 9-pin D-Sub opening

Intelligent System Module

Remote Monitoring

CPU/System fan speed , CPU/System temperature , motherboard voltage

CPU/System fan speed , CPU/System temperature , motherboard voltage

CPU/System fan speed , CPU/System temperature , motherboard voltage

CPU/System fan speed , CPU/System temperature , motherboard voltage

CPU/System fan speed , CPU/System temperature , motherboard voltage

Power Supply

Power Supply

500W (Single)

700W (Single)

500W (Single)

500W (Single)

700W (Single)
