ACP-2320MB
LED指示燈與聲音警報通知，用于系統故障檢測
適合業務擴展的理想機箱

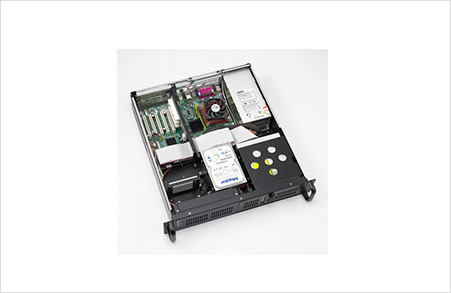

ACP-2320MB配有1個薄型光驅、2個內置3.5"驅動器和雙可移動SAS/SATA HDD托架

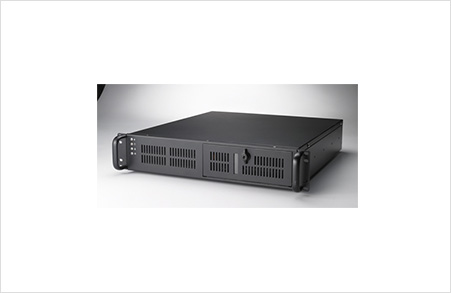

緊湊型2U高上架式機箱，支持ATX 母板
可通過多種轉接卡支持3個全長PCI或PCIe擴展卡
易于維護的雙SATA HDD托架，便于數據鏡像
前置LED指示燈顯示系統警報
支持300 W / 400 W ATX PFC電源
前置USB和PS/2接口
空氣過濾器可重復使用、可清洗
磁盤驅動器倉抗落下設計，支持2個internal 3.5 HDD
前置且便于更換的空氣過濾器
前門可鎖，禁止無權訪問
蝶形卡，最多支持3塊全長PCI卡
300W/400W ATX PFC電源供應
規格

Part Number

ACP-2320MB-00CE

Form Factor

Form Factor

2U Rackmount

Front I/O Interface

USB2.0

10 D-sub openings supporting up to 10 COMs with optinal COM cables

PS/2

1

Cooling

Air Filter

Yes

Fan

2 (8 cm /47 CFM each) + 1 (6 cm /28 CFM) for SATA storage unit

Environment

Operating-Temperature

0 ~ 45

Non-Operational Temperature

-20 ~ 60° C (-4 ~ 140° F)

Non-Operating Vibration

2 G

Operating Shock

10 G (with 11 ms duration, half sine wave)

Operating Humidity

10 ~ 85% @ 40° C, non-condensing

Non-Operating Humidity

10 ~ 95% @ 40° C, non-condensing

Operating Vibration (5 ~ 500 Hz)

1 Grms

Physical Characteristics

Weight

10.7 kg (23.5 lb)

Dimensions (W x H x D)

482 x 88 x 480 mm (19" x 3.46" x 18.9")

Disk Drive Bay

Slim ODD

1

3.5 External Bay

2

Hot-swap Drive Bay

2 (compatible with 3.5" or 2.5" devices)

Miscellaneous

LED Indicators

Power, HDD, temperature, fan

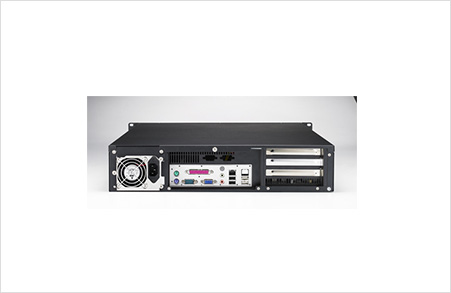

Rear Panel

Two 9-pin D-Sub openings

Intelligent System Module

Remote Monitoring

CPU/System fan speed , CPU/System temperature , motherboard voltage
