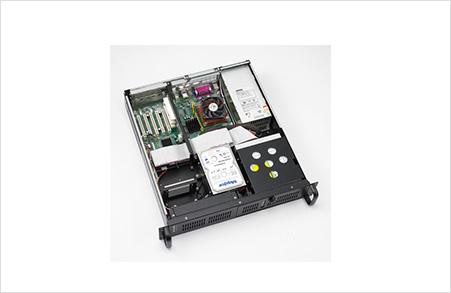

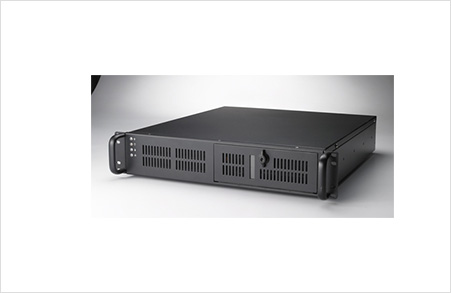

ACP-2010MB
LED指示燈與聲音警報通知，用于系統故障檢測
ACP-2010MB的抗沖擊磁盤驅動器托架可支持1個5.25"和3個3.5"驅動器(1個前部可訪問和2個內置)
可通過多種轉接卡支持3個全長PCI或PCIe擴展卡
支持300 W / 400 W ATX PFC電源
空氣過濾器可重復使用、可清洗
規格

Part Number

ACP-2010MB-00CE

ACP-2010MB-35CE

ACP-2320MB-00CE

Form Factor

ACP-2320MB-25CE

Form Factor

2U Rackmount

2U Rackmount

2U Rackmount

Front I/O Interface

PS/2

1

1

1

USB2.0

10 D-sub openings supporting up to 10 COMs with optinal COM cables

10 D-sub openings supporting up to 10 COMs with optinal COM cables

10 D-sub openings supporting up to 10 COMs with optinal COM cables

Cooling

Fan

2 (8 cm / 47 CFM each)

2 (8 cm / 47 CFM each)

2 (8 cm /47 CFM each) + 1 (6 cm /28 CFM) for SATA storage unit

Air Filter

Yes

Yes

Yes

Environment

Operating-Temperature

0 ~ 45

0 ~ 45

0 ~ 45

Non-Operational Temperature

-20 ~ 60° C (-4 ~ 140° F)

-20 ~ 60° C (-4 ~ 140° F)

-20 ~ 60° C (-4 ~ 140° F)

Non-Operating Vibration

2 G

2 G

2 G

Operating Shock

Operating Humidity

10 G (with 11 ms duration, half sine wave)

10 G (with 11 ms duration, half sine wave)

10 G (with 11 ms duration, half sine wave)

Non-Operating Humidity

10 ~ 85% @ 40° C, non-condensing

10 ~ 85% @ 40° C, non-condensing

10 ~ 85% @ 40° C, non-condensing

Operating Vibration (5 ~ 500 Hz)

1 Grms

1 Grms

1 Grms

Physical Characteristics

Weight

10.7 kg (23.5 lb)

10.7 kg (23.5 lb)

10.7 kg (23.5 lb)

Dimensions (W x H x D)

482 x 88 x 480 mm (19" x 3.46" x 18.9")

482 x 88 x 480 mm (19" x 3.46" x 18.9")

482 x 88 x 480 mm (19" x 3.46" x 18.9")

Disk Drive Bay

Slim ODD

-

-

1

5.25 External Bay

1

1

-

3.5 External Bay

1

1

2

3.5 Internal Bay

2

2

2

Miscellaneous

LED Indicators

Power, HDD, Temperature, FAN Status

Power, HDD, Temperature, FAN Status

Power, HDD, Temperature, FAN Status

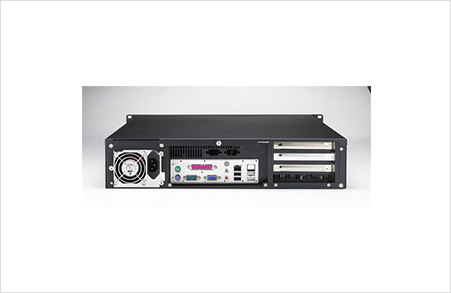

Rear Panel

Two 9-pin D-Sub openings

Two 9-pin D-Sub openings

Two 9-pin D-Sub openings

Intelligent System Module

Remote Monitoring

CPU/System fan speed , CPU/System temperature , motherboard voltage

CPU/System fan speed , CPU/System temperature , motherboard voltage

CPU/System fan speed , CPU/System temperature , motherboard voltage

Power Supply

Power Supply

-

350W (Single)

-
