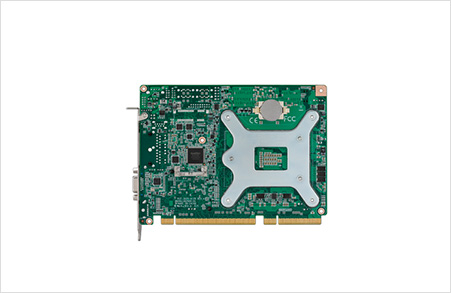

Part Number

PCE-3029G2-00A1E

Form Factor

Form Factor

PICMG 1.3 Half-Size SBC

Processor System

CPU

Intel 6th Core i3/i5/i7 (LGA1151)

CPU TDP

Up to 65 W

Frequency

Up to 3.7 GHz

Core Number

4

L3 Cache

8 MB

BIOS

AMI 128 Mbit SPI Flash

Chipset

Intel H110

Integrated Graphics

Yes

Memory

Technology

DDR4 2133/1866 MHz

Capacity

Up to 32 GB

Socket

2 x 260-pin SO-DIMM

Memory

Technology

Intel HD graphics Integrated

Capacity

Dual

Socket

VGA: Up to 1920 x 1200 DVI-D: Up to 1920 x 1200

Expansion Interface

PCI Express x 16

1

PCI Express x 4

1

Ethernet

Controller

LAN1: Intel I219V, LAN2: Intel I211AT

Speed

10/100/1000 Mbps

Connector

2 x RJ45

WatchDog Timer

Output

System Reset

I/O

COM Port

2 x RS232

GPIO

8-bit

LPT

1

SATA

4 x SATA III

USB2.0

7

USB3.0

2

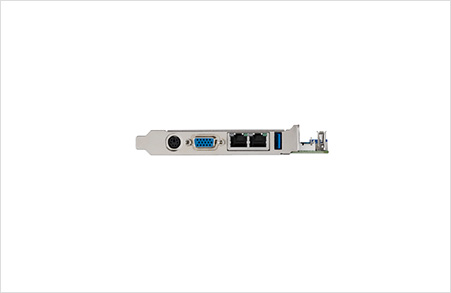

Rear I/O Interface

USB3.0

1

PS/2

1 (for mouse and keyboard, a Y cable is included in the package)

Ethernet

2

VGA

1

Power Requirement

Voltage

+12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V

Current

4.6A/0.01A/0.32A/0.08A/0/0

Environment

Operating-Temperature

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

Non-Operational Temperature

-40 ~ 85° C @ 95% RH Non-Condensing

Non-Operating Vibration

2 Grms

Physical Characteristics

Dimensions (LxW)

167.64 mm x 126.39 mm (6.6'' x 4.98'')

Weight

0.33 kg

Certification

EMC

CE, FCC
