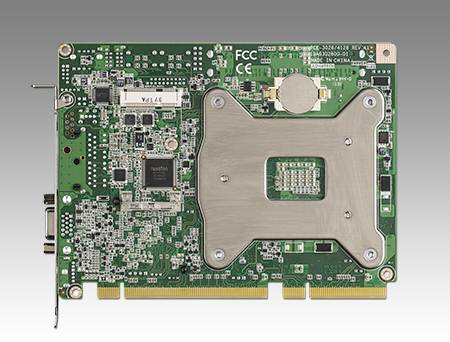

PCE-4128
Complies with PICMG 1.3
Supports Intel Xeon E3 1200v3 series, Core i7/i5/i3 LGA1150 processors with C226
Dual Channel DDR3 1066/1333/1600 up to 16 GB (Only ECC support)
Supports PCIE 3.0, USB 3.0, SATA3.0, SW Raid 0, 1, 5, 10
Supports triple displays
Support dual 10/100/1000 Mbps Ethernet
Supports out-of-band remote management with AMT9.0
Supports Advantech TPM module (LPC I/O)
Supports SUSIAccess and Embedded Software APIs
規(guī)格

Part Number

PCE-4128G2-00A1E

Form Factor

Form Factor

PICMG 1.3 Half-Size SBC

Processor System

CPU

Intel 4th Core i3/i5/i7 (LGA 1150)

Memory

Capacity

Up to 16 GB

Ethernet

Controller

LAN1: Intel I217LM LAN2: Intel I210AT

WatchDog Timer

Output

System Reset

Rear I/O Interface

USB3.0

1

Power Requirement

Voltage

+12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V

Environment

Operating-Temperature

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

Non-Operational Temperature

-40~ 85° C and 60° C @ 95% RH Non-Condensing

Physical Characteristics

Dimensions (LxW)

167.64 mm x 126.39 mm (6.6'' x 4.98'')
