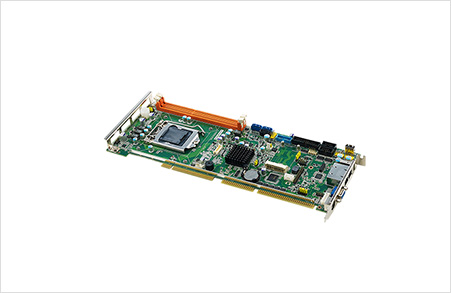

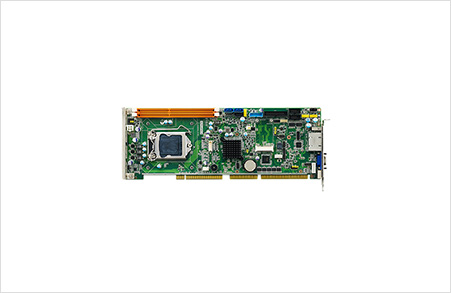

PCA-6028
Supports Intel? Core? i7/i5/i3/Pentium LGA1150 processors with H81
Dual Channel (Non-ECC) DDR3 1333/1600 up to 16 GB
Supports USB 3.0, SATA3.0
Dual Display with VGA and DVI-D(optional)
Supports Advantech LPC modules.
Supports SUSIAccess and Embedded Software APIs
規(guī)格

Part Number

PCA-6028G2-00A1E

PCA-6028VG-00A1E

Form Factor

Form Factor

PICMG1.0 Full-Size SBC

PICMG1.0 Full-Size SBC

Processor System

CPU

Intel 4th Core i3/i5/i7 (LGA 1150)

Intel 4th Core i3/i5/i7 (LGA 1150)

Frequency

Up to 3.1 GHz

Up to 3.1 GHz

L3 Cache

8 MB

8 MB

BIOS

AMI 128 Mbit

AMI 128 Mbit

Chipset

Intel H81

Intel H81

Integrated Graphics

Yes

Yes

Memory

Technology

DDR3 1333/1600 MHz

DDR3 1333/1600 MHz

Capacity

Up to 16 GB

Up to 16 GB

Socket

2 x 240-pin DDR3

2 x 240-pin DDR3

Display

Controller

Intel HD graphics Integrated

Intel HD graphics Integrated

Multiple Display

Dual

Single

Display Interface

VGA: Up to 2048 x 1536 DVI: Up to 1920 x 1200

VGA: Up to 2048 x 1536

Ethernet

Controller

LAN1: Intel I217V LAN2: Intel I211

LAN1: Intel I217V

Speed

10/100/1000 Mbps

10/100/1000 Mbps

Connector

2 x RJ45

1 x RJ45

WatchDog Timer

Output

System Reset

System Reset

Interval

Programmable 1 ~ 255 sec

Programmable 1 ~ 255 sec

I/O

COM

2 x RS-232

2 x RS-232

Ethernet

2

1

GPIO

8-bit

8-bit

LPT

1

1

PS/2 Keyboard/Mouse

1

1

SATA

1 x SATAII/2 x SATAIII/1 x mSATA

1 x SATAII/2 x SATAIII/1 x mSATA

System Fan

1

1

USB2.0

8

7

USB3.0

2

2

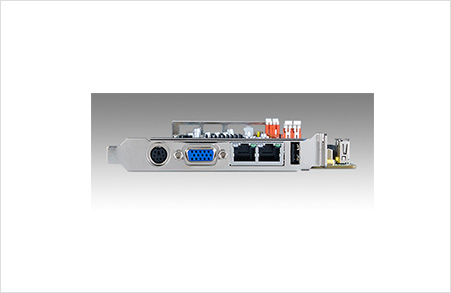

Rear I/O Interface

USB2.0

1

-

PS/2

1 (for mouse and keyboard, a Y cable is included in the package)

1 (for mouse and keyboard, a Y cable is included in the package)

Ethernet

2

1

VGA

1

1

Power Requirement

Voltage

+12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V

+12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V

Current

0.32 A/1.92 A/0 A/0.06 A/0 A/0 A

0.32 A/1.92 A/0 A/0.06 A/0 A/0 A

Environment

Operating-Temperature

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

Non-Operational Temperature

-40 ~ 85° C and 60° C @ 95% RH Non-Condensing

-40 ~ 85° C and 60° C @ 95% RH Non-Condensing

Physical Characteristics

Dimensions (LxW)

338 x 122 mm (13.3" x 4.8")

338 x 122 mm (13.3" x 4.8")

Certification

EMC

CE, FCC

CE, FCC

Management Solution

Out of band remote management

AMT

AMT
