Part Number

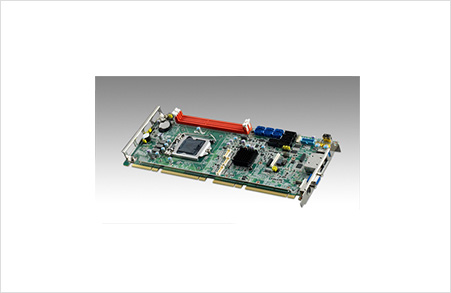

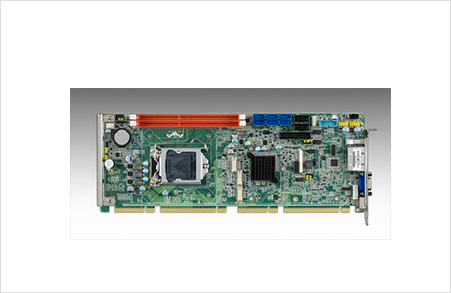

PCE-5128G2-00A1E

Form Factor

Form Factor

PICMG1.3 Full-Size SBC

Processor System

CPU

Intel 4th Core i3/i5/i7 (LGA 1150)

CPU TDP

Up to 65 W

Frequency

Up to 3.1 GHz

Core Number

4

L3 Cache

8 MB

BIOS

AMI 64 Mbit

Chipset

Intel Q87

Integrated Graphics

Yes

Memory

Technology

DDR3 1333/1600 MHz

Capacity

Up to 16 GB

Socket

2 x 240-pin DDR3

Display

Controller

Intel HD graphics Integrated

Multiple Display

Dual

Display Interface

VGA: Up to 1920 x 2000 DVI: Up to 1920 x 1200

Expansion Interface

PCI Express x 16

1

PCI Express x 4

1

PCI

4

Ethernet

Controller

LAN1: Intel I217LM LAN2: Intel I211AT

Speed

10/100/1000 Mbps

Connector

2 x RJ45

WatchDog Timer

Output

System Reset

Interval

Programmable 1 ~ 255 sec

I/O

COM Port

2 x RS-232

GPIO

8-bit

LPT

1

PS/2 Keyboard/Mouse

1

SATA

6 x SATAIII (RAID 0, 1, 5, 10)

System Fan

1

USB2.0

9

USB3.0

2

Rear I/O Interface

USB3.0

1

PS/2

2 (1 x Keyboard, 1 x Mouse)

Ethernet

2

VGA

1

Power Requirement

Voltage

+12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V

Current

4.02 A/1.36 A/0.81 A/0.09 A/0 A/0 A

Environment

Operating-Temperature

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

Non-Operational Temperature

-40 ~ 85° C and 60° C @ 95% RH Non-Condensing

Non-Operating Vibration

2 Grms

Physical Characteristics

Dimensions (LxW)

338 x 122 mm (13.3" x 4.8")

Weight

0.5 kg

Certification

EMC

CE, FCC

Management Solution

Out of band remote management

AMT
