Part Number

PCE-5129G2-00A1E

Form Factor

Form Factor

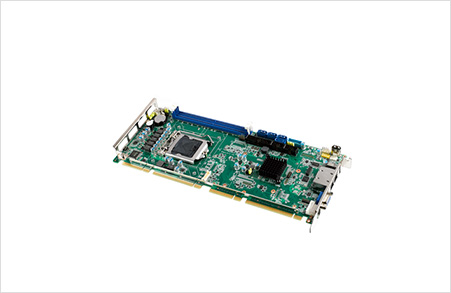

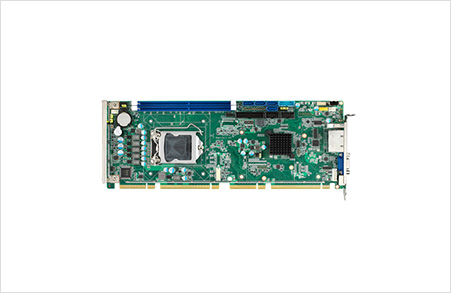

PICMG1.3 Full-Size SBC

Processor System

CPU

Intel 6th Core i3/i5/i7 (LGA1151)

CPU TDP

Up to 65 W

Frequency

Up to 3.4 GHz

Core Number

4

L3 Cache

8 MB/6 MB/4 MB/3 MB/2 MB

BIOS

AMI 128 Mbit

Chipset

Q170

Integrated Graphics

Yes

Memory

Technology

DDR4 1866/2133 MHz

Capacity

Up to 32 GB

Socket

2 x 288-pin DDR4

Display

Controller

Intel HD graphics Integrated

Multiple Display

Triple

Display Interface

VGA: Up to 1920 x 1200 DVI: Up to 1920 x 1200 DP: 1920 x 1080

Expansion Interface

PCI Express x 16

1

PCI Express x 4

1

PCI

4

Ethernet

Controller

LAN1: Intel I219LM, LAN2: Intel I211AT

Speed

10/100/1000 Mbps

Connector

2 x RJ45

WatchDog Timer

Output

System Reset

Interval

Programmable 1 ~ 255 sec

I/O

COM Port

2 x RS-232

GPIO

8-bit

LPT

1

PS/2 Keyboard/Mouse

1

SATA

5 x SATAIII (RAID 0, 1, 5, 10)

System Fan

1

USB2.0

7

USB3.0

2

Rear I/O Interface

USB3.0

1

PS/2

2 (1 x Keyboard, 1 x Mouse)

Ethernet

2

VGA

1

Power Requirement

Voltage

+12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V

Current

2.64 A/1.23 A/0.19 A/0.09 A/0 A/0 A

Environment

Operating-Temperature

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

Non-Operational Temperature

-40 ~ 85° C and 60° C @ 95% RH Non-Condensing

Non-Operating Vibration

2 Grms

Physical Characteristics

Dimensions (LxW)

338 x 122 mm (13.3" x 4.8")

Weight

0.5 kg

Certification

EMC

CE, FCC

Management Solution

Out of band remote management

AMT
