Part Number

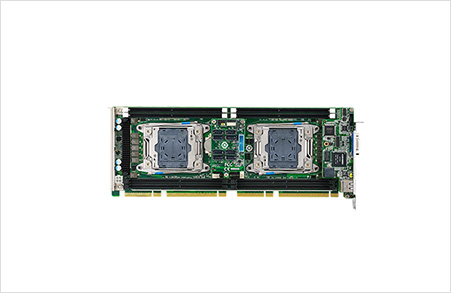

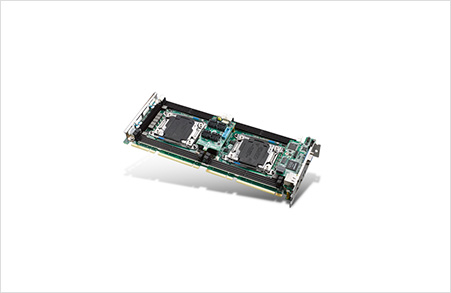

PCE-9228G2-00A1E

Form Factor

Form Factor

PICMG1.3 Full-Size SBC

Processor System

CPU

Intel Xeon E5-2600 v3 dual processor

CPU TDP

120 W

Frequency

Up to 3.3 GHz

Core Number

12

L3 Cache

Up to 30 MB depended on Intel CPU datasheet

BIOS

AMI 64 Mbit

Chipset

Intel C612

Memory

Technology

DDR4 1600/1866/2133 MHz (ECC)

Capacity

Up to 256 GB

ECC Support

Yes

Socket

8 x 288-pin DDR4-REG

Display

Controller

Aspeed AST1400/2400

Multiple Display

Single

Display Interface

VGA: Up to 1920 x 1200

Expansion Interface

PCI Express x 16

1

PCI Express x 4

1

PCI Express x 1

4

PCI

4

PCI Express Links

80 x PCIe 3.0 Links

Ethernet

Controller

LAN1: Intel I210AT LAN2: Intel I210AT

Speed

10/100/1000 Mbps

Connector

2 x RJ45

WatchDog Timer

Output

System Reset

Interval

Programmable 1 ~ 255 sec

I/O

COM Port

1 x RS-232

GPIO

8-bit

SATA

8 x SATAIII (RAID 0,1,5,10)

USB2.0

6

USB3.0

4

Rear I/O Interface

USB3.0

2

USB2.0

2

Ethernet

2

VGA

1

Power Requirement

Voltage

+12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V

Current

26.73 A/ 1.07 A/ 2.61 A/ 0.01 A/ 0.07 A

Environment

Operating-Temperature

0 ~ 45

Non-Operational Temperature

-40 ~ 85° C and 60° C @ 95% RH Non-Condensing

Non-Operating Vibration

2 Grms

Physical Characteristics

Dimensions (LxW)

338 x 122 mm (13.3" x 4.8")

Weight

1.1 Kg

Certification

EMC

CE, FCC
