Part Number

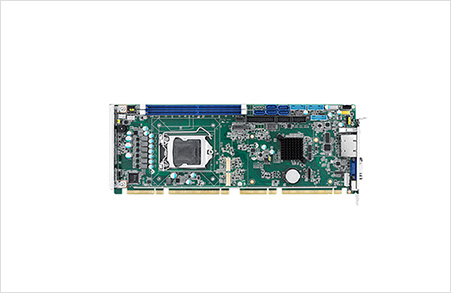

PCE-5131G2-00A1

Form Factor

Form Factor

PICMG1.3 Full-Size SBC

Processor System

CPU

Intel 8th Core i3/i5/i7 (LGA1151)

CPU TDP

Up to 65 W

Frequency

Up to 3.2 GHz

Core Number

Up to 6

L3 Cache

Up to 12M

BIOS

AMI SPI 256 Mbit

Chipset

Intel Q370

Integrated Graphics

Yes

Memory

Technology

DDR4 2400/2666 MHz

Capacity

Up to 32 GB

Socket

2 x 288-pin DDR4

Display

Controller

Intel HD graphics Integrated

Multiple Display

Triple

Display Interface

VGA: Up to 1920 x 1200 DVI: Up to 1920 x 1200 DP: 1920 x 1080

Expansion Interface

PCI Express x 16

1

PCI Express x 4

1

PCI

4

Ethernet

Controller

LAN1: Intel I219LM, LAN2: Intel I210AT

Speed

10/100/1000 Mbps

Connector

2 x RJ45

WatchDog Timer

Output

System Reset

Interval

Programmable 1 ~ 255 sec

I/O

COM Port

2 x RS-232

GPIO

8-bit

LPT

1

PS/2 Keyboard/Mouse

1

SATA

5 x SATA III (Raid 0, 1, 5, 10)

System Fan

1

USB2.0

7

USB3.0

6

Rear I/O Interface

USB3.1 Gen 2

1

PS/2

1

Ethernet

2

VGA

1

Power Requirement

Voltage

12V / 5V / 3.3V

Current

4.3A / 2.15A / 0.69A

Environment

Operating-Temperature

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

Non-Operational Temperature

-40 ~ 85° C and 60° C @ 95% RH Non-Condensing

Non-Operating Vibration

2Grms

Physical Characteristics

Dimensions (LxW)

338 x 122 mm (13.3" x 4.8")

Weight

0.5 kg

Certification

EMC

CE, FCC

Management Solution

Out of band remote management

AMT
