Part Number

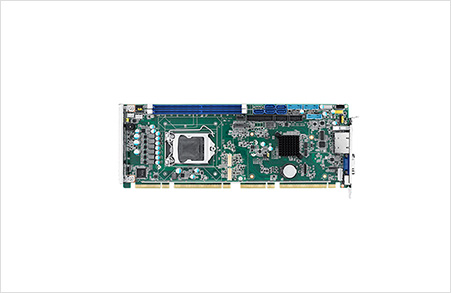

PCE-7131G2-00A1

Form Factor

Form Factor

PICMG1.3 Full-Size SBC

Processor System

CPU

Intel Xeon E3

CPU TDP

Up to 84 W

Frequency

Up to 3.8 GHz

Core Number

Up to 6

L3 Cache

12M/9M/6M

BIOS

AMI SPI 256 Mbit

Chipset

Intel C246

Integrated Graphics

Yes

Memory

Technology

DDR4 2400/2666 MHz

Capacity

Up to 32 GB

ECC Support

Yes

Socket

2 x 288-pin DDR4

Display

Controller

Intel HD graphics Integrated

Multiple Display

Triple

Expansion Interface

PCI Express x 16

1 (or 2 PCIe x 8)

PCI Express x 4

1

PCI

4

Ethernet

Controller

LAN1: Intel i219LM; LAN2: Intel i210, support Wake-on-LAN

Speed

10/100/1000 Mbps

Connector

2 x RJ45

WatchDog Timer

Output

System Reset

Interval

Programmable 1 ~255 sec

I/O

COM Port

2 x RS-232

GPIO

8-bit

LPT

1

PS/2 Keyboard/Mouse

1

SATA

5 x SATAIII (RAID 0, 1, 5, 10)

System Fan

1

USB2.0

7

USB3.0

6

Rear I/O Interface

USB3.0

1

PS/2

1

Ethernet

2

VGA

1

Power Requirement

Voltage

+12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V

Environment

Operating-Temperature

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

Non-Operational Temperature

-40 ~ 85° C and 60° C @ 95% RH Non-Condensing

Non-Operating Vibration

2 Grms

Physical Characteristics

Dimensions (LxW)

338 x 122 mm (13.3" x 4.8")

Weight

0.5 kg

Certification

EMC

CE, FCC

Management Solution

Out of band remote management

AMT
