Part Number

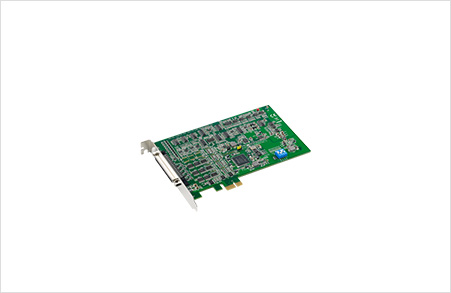

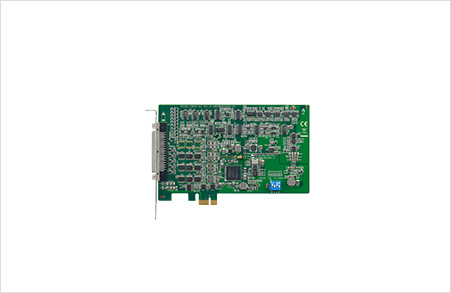

PCIE-1810-AE

General

Power Consumption

Typical: 3.3 V @ 488 mA; Max.: 3.3 V @ 2.25 A

OS Support

32-bit/64-bit Windows 7/8/10, and Linux

Dimensions

167 x 100 mm

Bus

PCIe

I/O Connectors

68-pin SCSI female connector

Operating Temperature

0 ~ 60°C (32 ~ 140°F) (refer to IEC 60068-2-1, 2)

Programming Language

C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

Triggering

12 bits Analog x 2 / Digital x 2

Analog Input

Sampling Rates(S/s)

800 K

Bipolar Inputs (V)

±10V, ±5, ±2.5, ±1.25, ±0.625

Channels

16

Type

Scan

Unipolar Input (V)

0~10, 0~5, 0~0.25, 0~1.25

Resolution(Bits)

12

Input Impedance

1 GO

Trigger Mode

Start trigger, Delay to Start trigger, Stop trigger, Delay to Stop trigger

Overvoltage Protection

30 Vp-p

Analog Output

Resolution(Bits)

12

Channels

2

Output Ranges

0 ~ +10 V, 0 ~ +5 V -5V ~ +5 V -10 V ~ +10 V

Update Rate(S/s)

500 K

Timer/Counter

Resolution

32 bits

Channels

2

Max. Input Frequency

10 MHz

TTL DI/O

Input Channels

24 (shared)

Output Channels

24 (shared)
