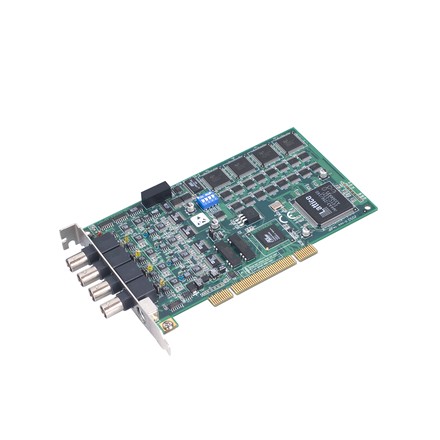

PCI-1714
4通道單頭模擬輸入
12位模擬/數字轉換器，高達30MHz采樣率
可編程增益
內建有先進先出FIFO內存（32,768樣本）
4部模擬/數字轉換器同時采樣
多種模擬/數字觸發模式
BoardID?開關
通用PCI總線（支持3.3伏或5伏PCI總線信號）
規格

Part Number

PCI-1714U-BE

PCI-1714UL-BE

General

Power Consumption

Typical: 5V @ 850 mA ; 12V @ 600 mA; Max.: 5V @ 1 A; 12V @ 700mA

Typical: 5V @ 850 mA ; 12V @ 600 mA; Max.: 5V @ 1 A; 12V @ 700mA

OS Support

32-bit/64-bit Windows 7/8/10, and Linux

32-bit/64-bit Windows 7/8/10, and Linux

Dimensions

175 x 100 mm (6.9" x 3.9")

175 x 100 mm (6.9" x 3.9")

Bus

PCI

PCI

I/O Connectors

4 x BNC, 1 x PS/2

4 x BNC, 1 x PS/2

Operating Temperature

0~70° C (32~158° F)

0~70° C (32~158° F)

Programming Language

C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

Analog Input

Sampling Rates(S/s)

30 M

10 M

Bipolar Inputs (V)

±5, ±2.5, ±1, ±0.5

±5, ±2.5, ±1, ±0.5

Channels

4

4

Type

Simultaneous Sample

Simultaneous Sample

Resolution(Bits)

12

12

Input Impedance

50/10M/High Z selectble

50/10M/High Z selectble

Overvoltage Protection

30 Vp-p

30 Vp-p
