Part Number

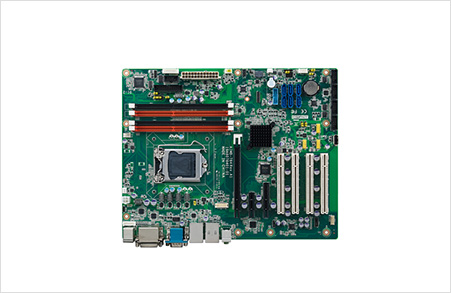

AIMB-784G2-00A1E

Form Factor

Form Factor

ATX

Processor System

CPU

Intel 4th Core i3/i5/i7 (LGA1150)

Frequency

Up to 3.7 GHz

L3 Cache

8 MB/6 MB/4 MB/3 MB/

BIOS

AMI SPI 128 Mbit

Chipset

Intel Q87

Integrated Graphics

Yes

Socket

LGA1150

Memory

Technology

Dual Channel DDR3 1333/1600 MHz

Capacity

Up to 32 GB (8 GB per DIMM)

Socket

4 x 240-pin DIMM

Display

Controller

Intel HQ Graphics Integrated

Graphic Memory

Share system memory up to 1 GB with 2 GB and above memory installed

Multiple Display

Triple

Display Interface

VGA: Up to 1920 x 1200 , DVI-D: Up to 1920 x 1200

Expansion Interface

PCI Express x 16

1

PCI Express x 4

1

PCI Express x 1

1

PCI

4

LPC

1

Ethernet

Controller

LAN1: Intel I217LM, LAN2: Intel I211AT

Connector

2 x RJ-45

Interface

10/100/1000 Mbps

WatchDog Timer

Output

System Reset

Interval

Programmable 1~255 sec

I/O

COM Port

5 (4 x RS-232, 1 x RS-232/422/485)

GPIO

8-bit

LPT

1

PS/2 Keyboard/Mouse

1

SATA

6 x SATA III (RAID 0, 1, 5, 10)

SPDIF

1

System Fan

2

USB2.0

7

USB3.0

2

Rear I/O Interface

Display

3

USB3.0

2

USB2.0

2

COM

1 (RS-232)

PS/2

2 (1 x keyboard and 1 x mouse)

Audio

2 (Mic-in, Line-out)

DVI

2

Ethernet

2

VGA

1

Physical Characteristics

Dimensions (LxW)

304.8 x 244 mm (12" x 9.6")

Certification

EMC

CE, FCC
