Part Number

ASMB-786G2-00A1

ASMB-786G4-00A1

Form Factor

Form Factor

ATX

ATX

Processor System

CPU

LGA 1151 Intel® Xeon® E and 8th/9th generation Core? i7/i5/i3 processors

LGA 1151 Intel® Xeon® E and 8th/9th generation Core? i7/i5/i3 processors

CPU TDP

Up to 95W

Up to 95W

Frequency

Up to 3.7 GHz

Up to 3.7 GHz

Core Number

Up to 6

Up to 6

L3 Cache

Up to 13.5MB

Up to 13.5MB

BIOS

AMI SPI 256 Mbit

AMI SPI 256 Mbit

Chipset

Intel C246

Intel C246

Integrated Graphics

Yes

Yes

DMI

Gen3 x4

Gen3 x4

Memory

Capacity

Up to 128 GB (32 GB per DIMM)

Up to 128 GB (32 GB per DIMM)

ECC Support

Yes

Yes

REG Support

-

-

Technology

Dual Channel DDR4 ECC/Non-ECC 2133/2400/2666 MHz

Dual Channel DDR4 ECC/Non-ECC 2133/2400/2666 MHz

Display

Graphic Memory

Share system memory up to 1 GB with 2 GB and above memory installed

Share system memory up to 1 GB with 2 GB and above memory installed

Controller

Intel HD graphics Integrated

Intel HD graphics Integrated

Multiple Display

Triple

Triple

Display Interface

VGA: Up to 1920 x 1200 , DVI-D: Up to 1920 x 1200, HDMI: Up to 2K/4K

VGA: Up to 1920 x 1200 , DVI-D: Up to 1920 x 1200, HDMI: Up to 2K/4K

Expansion Interface

PCI Express x 16

1(or 2 PCIe x8)

1(or 2 PCIe x8)

PCI Express x 4

2

2

PCI Express x 1

3

3

PCI

-

-

SMBus

1

1

LPC

1

1

Ethernet

Controller

1 x Intel I219-LM + 1 x Intel I210-AT

1 x Intel I219-LM + 3 x Intel I210-AT

Connector

2 x RJ45

4 x RJ45

Speed

10/100/1000 Mbps

10/100/1000 Mbps

WatchDog Timer

Output

System Reset

System Reset

Interval

Programmable 1 ~ 255 sec/min

Programmable 1 ~ 255 sec/min

I/O

COM Port

2 x RS-232

2 x RS-232

GPIO

8-bit

8-bit

LPT

1

1

PS/2 Keyboard/Mouse

1

1

SAS controller

-

-

SATA

8 x SATAIII (RAID 0,1,5,10)

8 x SATAIII (RAID 0,1,5,10)

SPDIF

1

1

System Fan

5

5

USB2.0

7

7

USB3.0

6

6

SAS Port

-

-

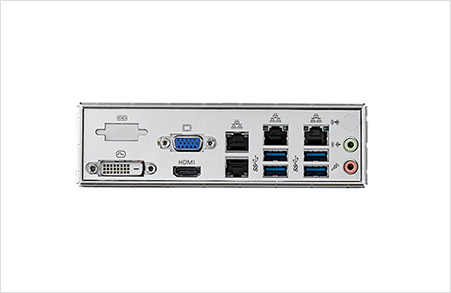

Rear I/O Interface

USB3.1 Gen 2

4

4

COM

-

-

PS/2

-

-

DVI

1

1

Ethernet

2

4

VGA

1

1

Power Requirement

Voltage

+12 V/+5 V/+3.3 V/+5 VSB/V12_8P/-12 V/ Total

+12 V/+5 V/+3.3 V/+5 VSB/V12_8P/-12 V/ Total

Environment

Operating-Temperature

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

Non-Operational Temperature

-40 ~ 85° C @ 95% RH Non-Condensing

-40 ~ 85° C @ 95% RH Non-Condensing

Non-Operating Vibration

3.5 Grms

3.5 Grms

Physical Characteristics

Dimensions (LxW)

304.8 x 244 mm (12" x 9.6")

304.8 x 244 mm (12" x 9.6")

Weight

0.8 kg (1.8 lb)

0.8 kg (1.8 lb)

Certification

EMC

CE, FCC

CE, FCC

Management Solution

Software

SUSIAccess(Optional)

SUSIAccess(Optional)

Out of band remote management

Optional(IPMI-1000) / AMT

Optional(IPMI-1000) / AMT
