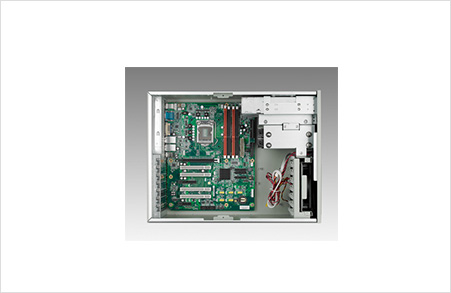

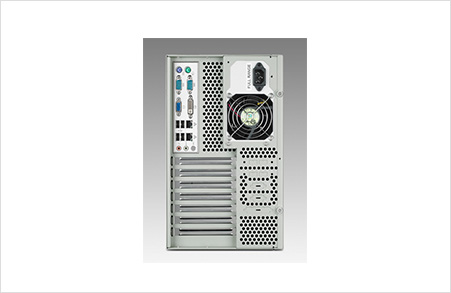

IPC-7132
支持 ATX/mATX 母板和10插槽背板
抗沖擊，支持1個 5.25" ODD 和 3個 3.5" HDD
支持1個 3.5" 1個 HDD 托架，可內置2個可選 2.5" HDD
拇指夾設計，易于打開頂蓋
可選 PS/2 300W/400W 電源
2種安裝選擇，可安置墻上安裝或工作臺上
規格

Part Number

IPC-7132MB-00XE

IPC-7132MB-25ZE

IPC-7132MB-30ZE

IPC-7132MB-40ZE

Form Factor

Form Factor

ATX

ATX

ATX

ATX

Front I/O Interface

USB2.0

10 D-sub openings supporting up to 10 COMs with optinal COM cables

10 D-sub openings supporting up to 10 COMs with optinal COM cables

10 D-sub openings supporting up to 10 COMs with optinal COM cables

10 D-sub openings supporting up to 10 COMs with optinal COM cables

Cooling

System Fan

1 (12 cm/85 CFM)

1 (12 cm/85 CFM)

1 (12 cm/85 CFM)

1 (12 cm/85 CFM)

Air Filter

Yes

Yes

Yes

Yes

Environment

Operating-Temperature

0 ~ 45

0 ~ 45

0 ~ 45

0 ~ 45

Non-Operational Temperature

-20 ~ 60° C (-4 ~ 140° F)

-20 ~ 60° C (-4 ~ 140° F)

-20 ~ 60° C (-4 ~ 140° F)

-20 ~ 60° C (-4 ~ 140° F)

Operating Shock

10 G (with 11 ms duration, half sine wave)

10 G (with 11 ms duration, half sine wave)

10 G (with 11 ms duration, half sine wave)

10 G (with 11 ms duration, half sine wave)

Operating Humidity

10 ~ 85% @ 40° C, non-condensing

10 ~ 85% @ 40° C, non-condensing

10 ~ 85% @ 40° C, non-condensing

10 ~ 85% @ 40° C, non-condensing

Non-Operating Humidity

10 ~ 95% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

Operating Vibration (5 ~ 500 Hz)

1 Grms

1 Grms

1 Grms

1 Grms

Non-Operating Vibration (5 ~ 500 Hz)

2 G

2 G

2 G

2 G

Physical Characteristics

Weight

9.96 kg (21.93 lb)

9.96 kg (21.93 lb)

9.96 kg (21.93 lb)

9.96 kg (21.93 lb)

Dimensions (W x H x D)

200 x 330 x 430 mm (7.9" x 13" x 16.9")

200 x 330 x 430 mm (7.9" x 13" x 16.9")

200 x 330 x 430 mm (7.9" x 13" x 16.9")

200 x 330 x 430 mm (7.9" x 13" x 16.9")

Disk Drive Bay

3.5" Front-Accessible

1

1

1

1

3.5 Internal Bay

2

2

2

2

Miscellaneous

LED Indicators

Power, HDD

Power, HDD

Power, HDD

Power, HDD

Control

Power Switch, System reset

Power Switch, System reset

Power Switch, System reset

Power Switch, System reset

Power Supply

Power Supply

-

250W (Single)

300W (Single)

400W (Single)
