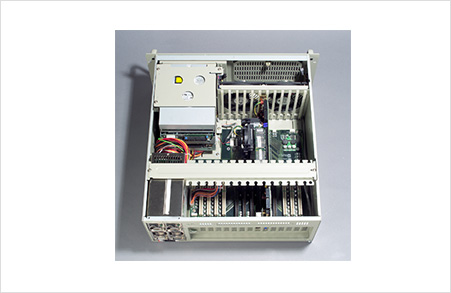

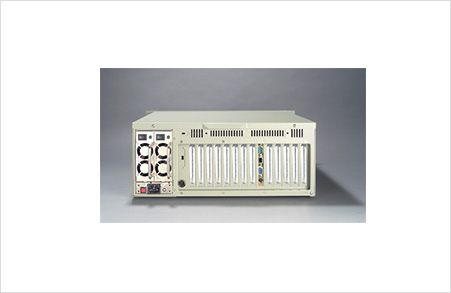

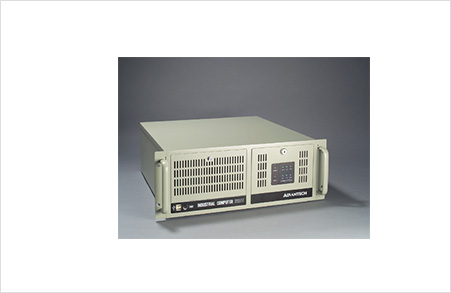

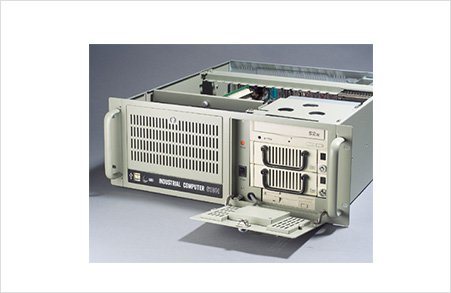

IPC-610-L
支持ATX 母板或 多達15槽的PICMG無源底板
抗沖擊磁盤驅動器托架可支持3個5.25" 和1個3.5"磁盤驅動器
獨特的固定壓條設計帶有橡膠墊腳，可以防止卡受到?jīng)_擊或振動造成的損壞
電源和HDD活動性通知，改善系統性能

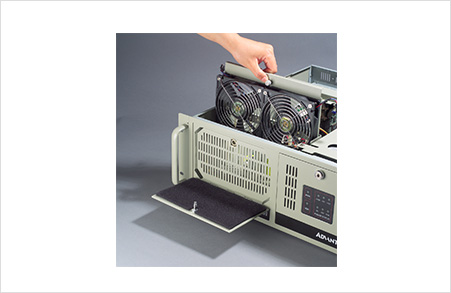

前部可訪問空氣過濾器，方便系統維護
可鎖前門，防止未經許可的訪問
靈活的機械設計，支持300 W單PS/2和冗余ATX電源
規格

Part Number

IPC-610BP-00LBE

IPC-610BP-50LBE

IPC-610MB-00LBE

IPC-611BP-00XBE

Form Factor

Form Factor

4U Rackmount

4U Rackmount

4U Rackmount

4U Rackmount

Cooling

Air Filter

Yes

Yes

Yes

Yes

Fan

1 (12 cm / 85 CFM)

1 (12 cm / 85 CFM)

1 (12 cm / 85 CFM)

1 (12 cm / 85 CFM)

Disk Drive Bay

3.5" External Bay

1

1

1

1

5.25 External Bay

3

3

3

3

Front I/O Interface

USB2.0

10 D-sub openings supporting up to 10 COMs with optinal COM cables

10 D-sub openings supporting up to 10 COMs with optinal COM cables

10 D-sub openings supporting up to 10 COMs with optinal COM cables

10 D-sub openings supporting up to 10 COMs with optinal COM cables

Environment

Operating-Temperature

0 ~ 45

0 ~ 45

0 ~ 45

0 ~ 45

Non-Operational Temperature

-20 ~ 60° C (-4 ~ 140° F)

-20 ~ 60° C (-4 ~ 140° F)

-20 ~ 60° C (-4 ~ 140° F)

-20 ~ 60° C (-4 ~ 140° F)

Operating Shock

10 G (with 11 ms duration, half sine wave)

10 G (with 11 ms duration, half sine wave)

10 G (with 11 ms duration, half sine wave)

10 G (with 11 ms duration, half sine wave)

Operating Humidity

10 ~ 85% @ 40° C, non-condensing

10 ~ 85% @ 40° C, non-condensing

10 ~ 85% @ 40° C, non-condensing

10 ~ 85% @ 40° C, non-condensing

Non-Operating Humidity

10 ~ 95% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

Operating Vibration (5 ~ 500 Hz)

1 Grms

1 Grms

1 Grms

1 Grms

Non-Operating Vibration (5 ~ 500 Hz)

2 G

2 G

2 G

2 G

Physical Characteristics

Weight

14.5 kg ( 31.9 lb )

14.5 kg ( 31.9 lb )

14.5 kg ( 31.9 lb )

14.5 kg ( 31.9 lb )

Dimensions (W x H x D)

482 x 177 x 479 mm (19" x 7" x 18.9")

482 x 177 x 479 mm (19" x 7" x 18.9")

482 x 177 x 479 mm (19" x 7" x 18.9")

482 x 177 x 479 mm (19" x 7" x 18.9")

Miscellaneous

LED Indicators

Power, HDD activity

Power, HDD activity

Power, HDD activity

Power, HDD activity

Graphics

Controller

Power, System reset button

Power, System reset button

Power, System reset button

Power, System reset button

Power Supply

Power Supply

-

500W (Single)

-

-
