Part Number

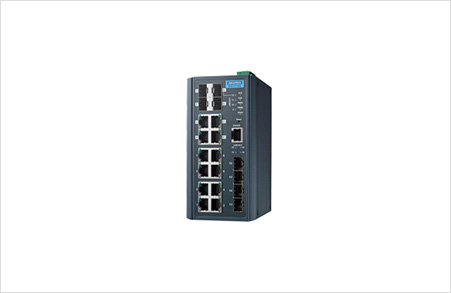

EKI-7716G-4F4C-AE

Certification

EMC

EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3), EN 50121-4, NEMA TS2

Freefall

IEC 60068-2-32

Shock

IEC 60068-2-27

Vibration

IEC 60068-2-6

EMI

CE, FCC Class A

Environment

Relative Humidity (Non-condensing)

10 ~ 95%

Storage Temperature (X)

-40 ~ 85°C (-40 ~ 185°F)

Mechanism

Dimensions (W x H x D)

74 x 152 x 105 mm (2.91" x 5.98" x 4.13")

Enclosure

Metal shell

IP Rating

IP30

Mounting (X)

DIN-rail, Wall mount

Weight

1.2kg

MTBF

Method

Telcordia, GB

Time

-

Power Requirement (X)

Connectors

6-pin removable screw terminal ((power & relay)

Operating Current

0.25A @ 48Vdc (system)

Power Consumption

12.1W (system)

Reverse Polarity

Present

Warranty

Warranty Period

5 years

Communication (XX)

IEEE Standard

802.1p,802.3ad,802.1x,802.1D, 802.1s, 802.1w

* Port Configuration

Fiber Port Description

4 x SFP(mini-GBIC), 4 x SFP Combo

Fiber Port Interface (X)

SFP

Fiber Transmission Distance (X)

Up to 110km

Ethernet Port Description

8 x 10/100/1000Base-T(X)

Ethernet Transmission Distance (X)

100 m

Ethernet PoE Port Number

-

Switch Properties

Jumbo Frame

9,216 bytes

MAC Table Size

8K

Packet Buffer Size

4.1MB

Switch Fabric Speed

32Gbps

Operating System (X)

Temperature

-10~60°C (14~140°F)

Ethernet Communication

Port Number

16

General (X)

Ethernet Connectors

8 x RJ-45 + 4 x SFP + 4 x RJ-45/SFP

I/O (X)

Transmission Speed

10/100/1000Base-T(X)

Power Supply (X)

Power Input

12 ~ 48 VDC
