Part Number

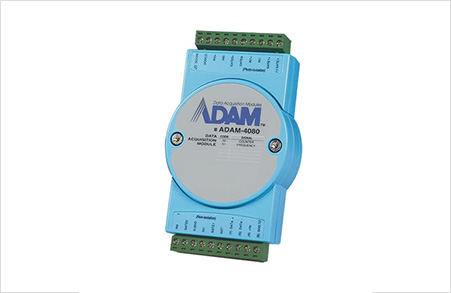

ADAM-4080-E

Display

LED Indicators

Power

Power Supply

Power Requirement

10~30 VDC

Digital I/O

Frequency Input

2 independent counters (32-bit + 1-bit overflow, 5~50kHz)

General

Watchdog Timer

System (1.6 second)

Connector

2 x plug-in terminal block (#14~22 AWG)

Temperature (Operating)

-10 ~ 70° C (14 ~ 158° F)

Humidity

5 ~ 95% RH

Temperature (Storage)

-25 ~ 85° C (-13 ~ 185° F)

Interface

RS-485

Isolation Protection

2,500 VRMS

Communication Protocol

ASCII command

Communication Speed

Serial: From 1,200 to 115.2 k

Comm. Distance

Serial: 1.2 km

Data Flow Control

Yes

Digital Output

Channels

2 Open collector to 30V, 30 mA max. load

Power Dissipation

300 mW for each channel
