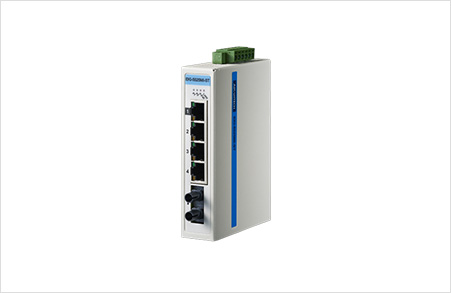

EKI-5525MI-ST
支持“自動化語言”Modbus/TCP協議，可用組態軟件管理
支持“IT語言” SNMP協議，可方便采用網管NMS軟件進行管理
基于QoS的VIP端口可保障關鍵數據的可靠傳輸
支持-40~75° C操作溫度范圍(僅限EKI-5525SI/SI-ST,EKI-5525MI/MI-ST型號)
8.4 ~52.8 VDC 寬電壓輸入
EMS level 3 工業標準更適合苛刻環境應用
IEEE 802.3az 節能標準更加節能環保
支持9,216 Bytes巨幀傳輸，讓數據傳輸更高效
支持12~48V冗余直流電源輸入及P-Fail繼電器
環路故障自動診斷
規格

Part Number

EKI-5525MI-ST-AE

Product Category

Unmanaged

Yes

Communication (XX)

IEEE Standard

IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3az, 802.3ab

* Port Configuration

Ethernet Port Description

4 x 10/100BaseT(X)

Ethernet Transmission Distance (X)

100 m

Ethernet PoE Port Number

-

Fiber Port Interface (X)

Multi-mode(ST type)

Fiber Port Description

1

Fiber Transmission Distance (X)

Up to 2 km

Switch Properties

MAC Table Size

2K

Packet Buffer Size

1M bit

Switch Fabric Speed

1.0Gbps

Jumbo Frame

9,216 bytes

Mechanism

Dimensions (W x H x D)

27 x 120 x 84 mm

IP Rating

IP30

Enclosure

Metal

Weight

-

Mounting (X)

DIN-rail, Wall

Environment

Operating Temperature (X)

-40 ~ 75°C (-40 ~ 167°F)

Storage Temperature (X)

-40 ~ 85°C (-40 ~ 185°F)

Relative Humidity (Non-condensing)

10 ~ 95%

MTBF

Time

TBD

Method

Telcordia(Relax), GB

Power Requirement (X)

Operating Voltage

12 ~ 48 VDC

Operating Current

0.11A @ 24V

Power Consumption

Max. 2.8 W

Connectors

6-pin removable screw terminal ((power & relay)

Reverse Polarity

Present

Certification

EMI

(X) EN 55011/ EN 55022 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A

EMS

EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Warranty

Warranty Period

5 years
