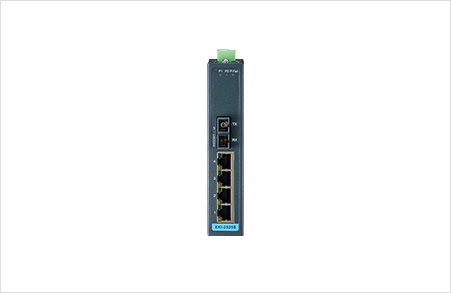

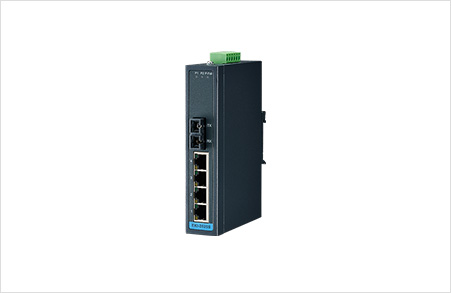

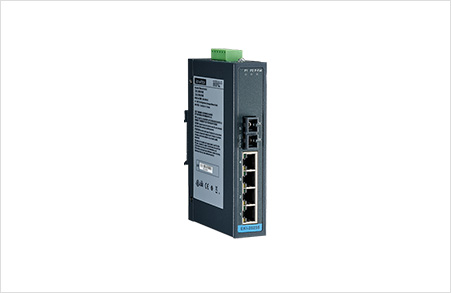

EKI-2525S
Provides 4 x 10/100 Mbps Ethernet ports with RJ45 connector
Provides 1 x 100 Mbps Multi-mode SC type fiber optic port (EKI-2525M)
Provides 1 x 100 Mbps Single-mode SC type fiber optic port (EKI-2525S)
Supports full/half duplex flow control
Supports MDI/MDI-X auto crossove
Provides broadcast storm protection
Provides redundant 12 ~ 48 VDC power input
Provides flexible mounting: DIN-rail and Wall mount
規(guī)格

Part Number

EKI-2525S-AE

Product Category

Unmanaged

Yes

Environment

Operating Temperature (X)

-10 ~ 60°C (14 ~ 140°F)

I/O (X)

Transmission Distance

Ethernet: Up to 100m Single-mode Fiber: Up to 30km

Transmission Speed

10/100Mbps

Power Supply (X)

Power Input

2 x Unregulated 12 ~ 48 VDC

Power Connector

6-pin removable screw terminal

General (X)

Ethernet Connectors

4 x RJ-45 + 1 x SC type fiber connector

Mounting

DIN-rail, Wall

Certifications

CE, FCC, UL/cUL 60950-1, Class I, Division 2

Interface (...)

Ports Number

5
