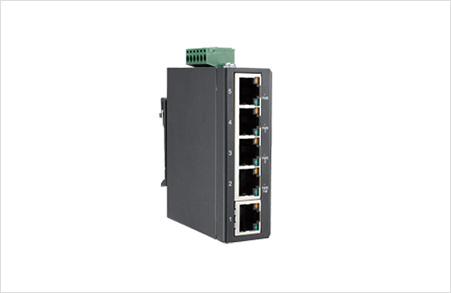

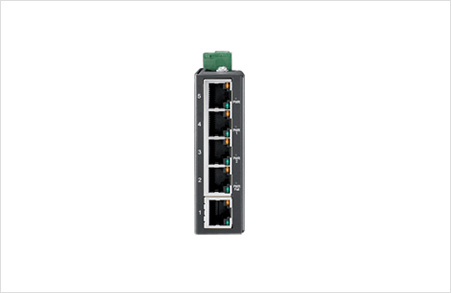

EKI-2525LI
提供5個自適應快速以太網口
支持10/100 Mbps 自適應
結構緊湊，支持 導軌安裝/壁掛式安裝, IP40等級金屬外殼
支持12 ~ 48 VDC 冗余電源輸入加一個直流電源插口和繼電器報警
寬工作溫度 -40 to 75 °C
規格

Part Number

EKI-2525LI-AE

Certification

EMI

EN 55022/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A

Freefall

IEC 60068-2-32

Shock

IEC 60068-2-27

Vibration

IEC 60068-2-6

EMC

CE, FCC

Warranty

Warranty Period

5 years

MTBF

Method

Telcordia(Relax), GB

Power Requirement (X)

Connectors

6-pin removable screw terminal ((power & relay)

Operating Current

0.23A @ 24V

Operating Voltage

12 ~ 48 VDC

Reverse Polarity

Present

Power Consumption

3.1W

Switch Properties

Packet Buffer Size

448Kbit (0.4375Mbits)

MAC Table Size

2K

Jumbo Frame

9,216 bytes

Switch Fabric Speed

1.0Gbps

Communication (XX)

IEEE Standard

IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3az, 802.3ab

Environment

Operating Temperature (X)

-40 ~ 75°C (-40 ~ 167°F)

Relative Humidity (X)

10 ~ 95% @ 40° C (non-condensing)

Storage Temperature (X)

-40 ~ 85°C (-40 ~ 185°F)

Mechanism

Dimensions (W x H x D)

25 x 80 x 84 mm

Enclosure

Metal shell

IP Rating

IP40

Mounting (X)

DIN-rail, Wall mount

Weight

500g

* Port Configuration

Ethernet Port Description

5 x 10/100/1000BaseT(X)

Ethernet Transmission Distance (X)

100 m
