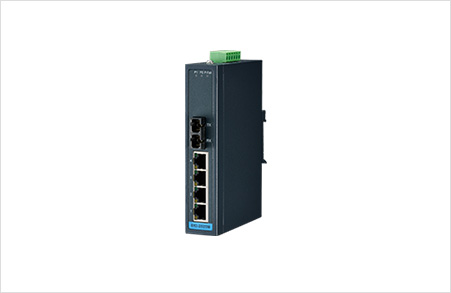

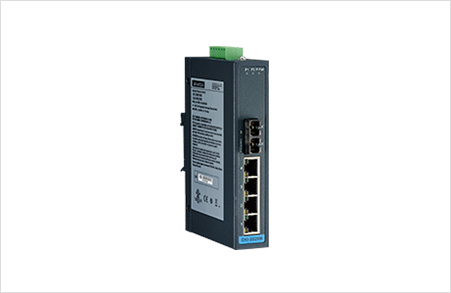

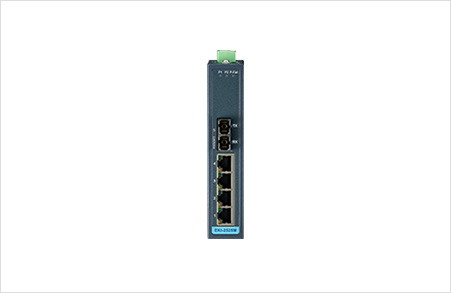

EKI-2525M-ST
Provides flexible mounting: DIN-rail and Wall mount
Provides redundant 12 ~ 48 VDC power input
Provides broadcast storm protection
Supports MDI/MDI-X auto crossover
Supports full/half duplex flow control
rovides 1 x 100 Mbps Multi-mode ST type fiber optic port
Provides 4 x 10/100 Mbps Ethernet ports with RJ45 connector
規(guī)格

Part Number

EKI-2525M-ST-BE

Product Category

Unmanaged

Yes

Environment

Operating Temperature (X)

-10 ~ 60°C (14 ~ 140°F)

I/O (X)

Transmission Distance

Ethernet: up to 100 m, Fiber: up to 30 km

Transmission Speed

10/100Mbps

Power Supply (X)

Power Input

2 x Unregulated 12 ~ 48 VDC

Power Connector

6-pin removable screw terminal

General (X)

Ethernet Connectors

4 x RJ-45 + 1 x ST type fiber connector

Mounting

DIN-rail, Wall

Certifications

CE, FCC, UL/cUL 60950-1, Class I, Division 2

Interface (...)

Ports Number

5
