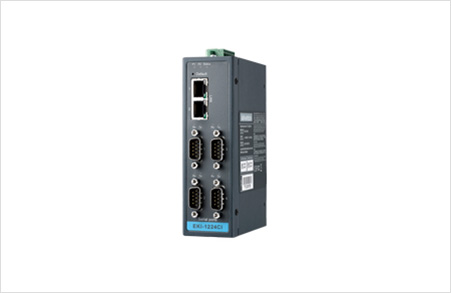

EKI-1224CI
支持2個10/100 Mbps 自適應以太網端口
整合Modbus TCP 和 Modbus RTU/ASCII網絡
支持最大921.6Kbps范圍內的任意波特率設定
同時最多支持16個連接和32個請求
支持在配置工具中自動搜索從設備的ID
軟件選擇RS-232/422/485通訊
支持DIN導軌安裝或壁掛安裝
內建15KV靜電放電（ESD）信號保護
RS-485自動數據流控制
支持 D.C. 電源端口突波保護，線對線 2 KV，線對地 4 KV；訊號端口 4 KV
支持隔離和寬工作溫度
規格

Part Number

EKI-1224CI-CE

Certification

EMC

CE, FCC

EMI

EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A

EMS

EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024

Freefall

IEC 60068-2-32

Safety

UL 60950-1

Shock

IEC 60068-2-27

Vibration

IEC 60068-2-6

Environment

Operating Humidity (X)

5 ~ 95% RH

Operating Temperature (X)

-40 ~ 75°C (-40 ~ 167°F)

Storage Temperature (X)

-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication

Ethernet Standard

IEEE 802.3 , 802.3ab , 802.3u

Port Connector Type

RJ45

Port Number

2

Transmission Speed

10/100BaseT(X), Auto-sensing

Mechanism

Dimensions (W x H x D)

48.6 x 140 x 95 mm (1.91" x 5.51" x 3.74")

Enclosure

Metal with solid mounting hardware

Mounting (X)

DIN-rail, Wall mount

Weight

555g

MTBF

Method

-

Time

-

Power Requirement (X)

Operating Current

0.7A @ 24V

Power Connector

Terminal block

Power Consumption

4.1W

Power Input

12 ~ 48 VDC, redundant dual inputs

Reverse Polarity

Present

Serial Communications (X)

Port Connector

DB9 male

Port Number

4

Port to Port Isolation

Serial to Ethernet 2 kV; Serial to Power 2 kV; Ethernet to Power 1.5 kV

Protection

Built-in 15 KV ESD for all signals

Serial Type

RS-422/485

Transmission Speed

50~ 976.5 kbps

Software

Configuration

Windows utility, Web Browser

Operation Modes (X)

Modbus RTU Master/Slave mode;Modbus ASCII Master/Slave mode

OS Support (X)

32-bit/64-bit Windows XP/7/8/8.1/10, Windows Server 2003/2008/2008 R2/2012/2012 R2 and Linux

Protocols

Modbus RTU, Modbus TCP, Modbus ASCII

Warranty

Warranty Period

5 years
