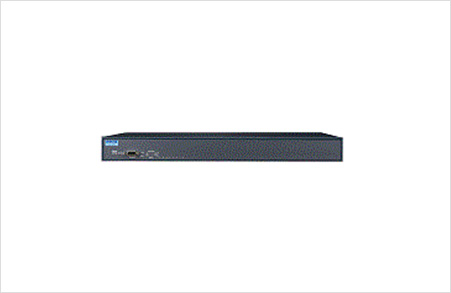

EKI-1528TI
Wide operating temperature -40~70°C (40~158°F)
8 or 16-port RS-232/422/485 serial communication
Provides 2 x 10/100/1000 Mbps Ethernet ports for LAN redundancy
Supports up to 976.5 kbps, and any baud rate setting
Provides COM port redirection (Virtual COM), TCP and UDP operation modes
Provides rich configuration methods: Windows utility, Telnet console, Web Browser, and serial console
Built-in 15 KV ESD protection for all serial signals
SNMP MIB-II for network management
Built-in buzzer for easy location
Standard 1U rackmount size
Rear wiring
Automatic RS-485 data flow control
規(guī)格

Part Number

EKI-1528TI-VDC-CE

Power

Input (X)

12 VDC ~ 48 VDC

Temperature (X)

Operating

'-40~75°C (-40~167°F)

Connector (...)

Ethernet Connectors

RJ45

Serial

DB9

Ethernet (X)

Ports

2

Interface

10/100/1000 Mbps

Serial Communication

Port Number

8

Serial Standard

RS-232 / RS-422 / RS-485

Software

Baud Rate

50~ 976.5 kbps

Operating Mode (X)

Virtual COM, TCP/UDP server TCP/UDP client Pair connection

Driver

32-bit/64-bit Windows 2000/XP/Vista/7/8/8.1/10, Windows Server 2003/2008/2012/2016, and Linux

Serial Communications (X)

Baud Rate

50~ 976.5 kbps, any baud rate setting

Interface (...)

Ports Number

8
