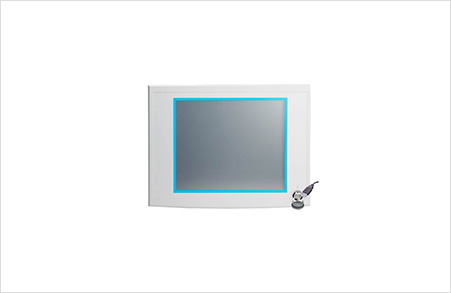

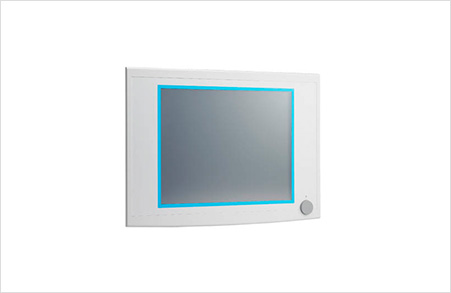

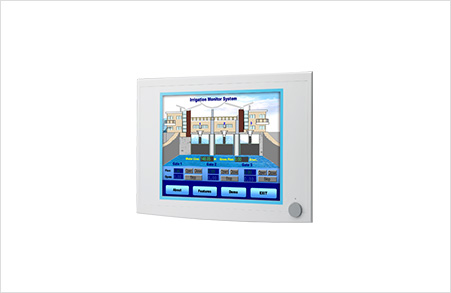

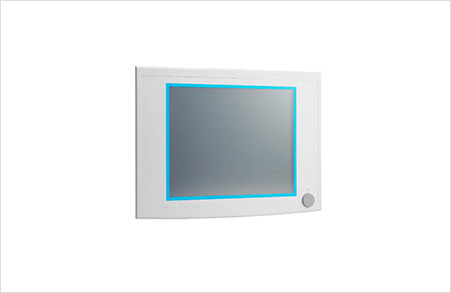

FPM-5171G
17”SXGA真彩液晶顯示屏，1080x1024分辨率

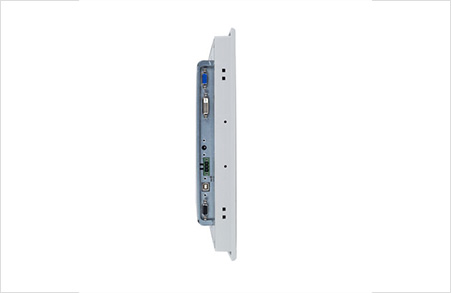

直連VGA&DVI-D視頻輸入接口
用戶定義對比/亮度設置的可鎖定屏幕菜單調節OSD鑰匙
平面密封的前面板設計
抗腐蝕底盤，壓鑄鋁制前面板，設計牢固
前接入U(xiǎn)SB連接器
支持觸摸屏功能的RS-232&USB組合接口（選用）
支持10-30伏直流工業電輸入

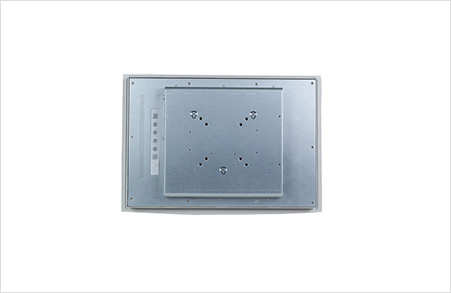

支持面板，墻掛，桌面，支架或VESA臂掛安裝
前面板符合NEMA4/IP65規格
規格

Part Number

FPM-5171G-R3BE

Display

Viewing Angle (H/V°)

170/160

Luminance (cd/m2)

350

Max. Resolution

1280 x 1024

Max. Colors

16.7 M

Display Type

17" XGA

Display Size

17"

Backlight MTBF(hrs)

50000

General

Certifications

BSMI, CCC, CE, FCC Class A, UL

Weight (Net)

8kg

Dimensions

481.93 x 384.6 x 59 mm (18.97" x 15.14" x 2.32")

Video Port

VGA & DVI

Power Input Voltage

10-30v

OSD(onscreen display)

On rear side with lockable function

Operating System

Windows XP,2000,Vista,7,8/8.1,10, Embedded,CE,Linux

Environment

Operating Temperature

0 ~ 50°C (32 ~ 122°F)

Storage Temperature

-20 ~ 60°C (-4 ~ 140°F)

Touchscreen

Lifespan

36 million with a silicone rubber of R8 finger, writing rate is by 250g at 2 times/s

Light Transmission

Above 80%

Resolution

Linearity

OS Support

Windows XP, Vista,7, 8,10,XPe and Linux

Power Consumption

+5 V @ 100 mA
