Part Number

TPC-1051WP-E3AE

General

Power Consumption

36 W (typical)

Power Input

24VDC +/- 20%

Watchdog Timer

1 ~ 255 sec (system)

Mounting

Desktop, Wall, Panel Mount, and VESA or stand mount (with optional kit)

Certifications

BSMI, CCC, CE, FCC Class A, UL, EAC

Dimensions (W x H x D)

283.1 x 202.3 x 61.4 mm ( 11.15" x 7.96" x 2.42)

BIOS

AMI UEFI

Cooling System

Fanless design

Enclosure

Front bezel: Die-cast Aluminum alloy, Back housing: SECC

OS Support

Microsoft® WES7 32bit/64bit / WE8S 64bit / Windows 7/ 8.1 32bit/64bit / Windows 10 Enterprise LTSB

Weight (Net)

2.56 kg (5.64 lbs)

System Hardware

CPU

Intel® Atom? E3827 1.75 GHz Processor

Memory

1 x SO-DIMM with 4GB DDR3L SDRAM (supports up to 8G)

Storage

CFast slot x 1, 2.5" SATA SSD slot x 1 (optional)

LAN

10/100/1000Base-T x 2

Expansion Slots

Full-size Mini PCI-E

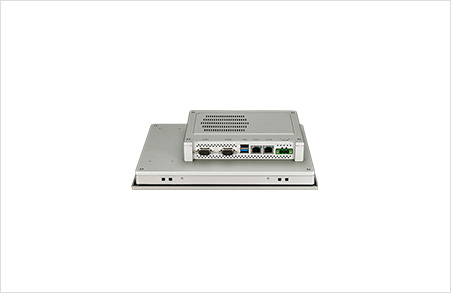

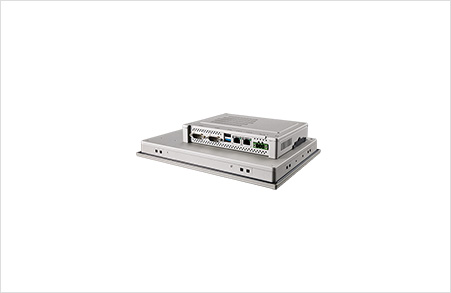

I/O

RS-232 x 1, RS-232/422/485 x 1, USB3.0 x 1, USB2.0 x 1

LCD Display

Viewing Angle (H/V°)

170/170

Luminance (cd/m2)

300

Contrast Ratio

1300:1

Max. Resolution

1280 x 800

Max. Colors

262 K

Display Type

WXGA TFT LED LCD

Display Size

10.1"

Environment

Ingress Protection

Front panel: IP66

Vibration Protection

With HDD: 1 Grms (5 ~ 500 Hz)

Operating Temperature

-20 ~ 55°C (-4 ~ 131°F)

Storage Temperature

-30 ~ 70°C (-22 ~ 158°F)

Humidity

10 ~ 90% RH @ 40°C, non-condensing

Touchscreen

Light Transmission

90% ± 3%

Resolution

2048 x 2048

Type

Projected capacitive
