Part Number

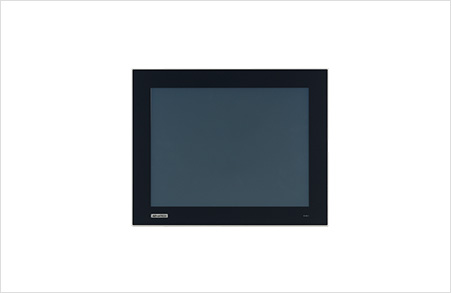

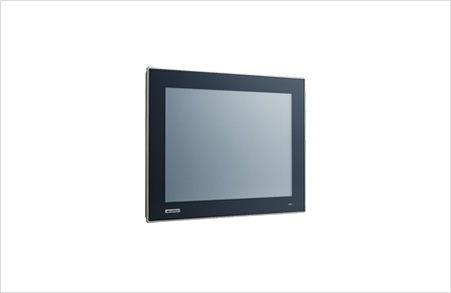

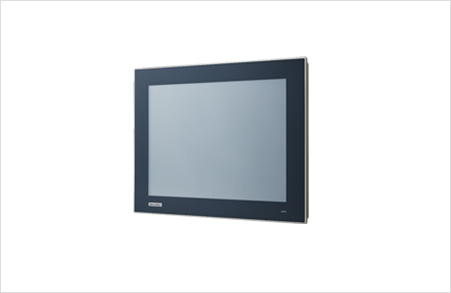

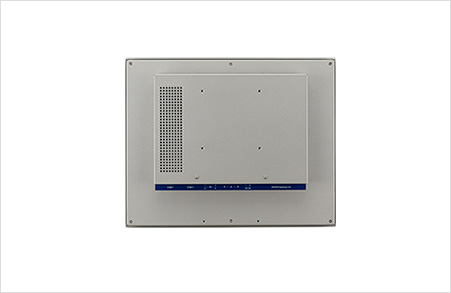

TPC-1551T-E3BE

Display

Type

XGA TFT LED LCD

Viewing Angle (H/V°)

176/176

Backlight Life (hrs)

70,000 hrs

Luminance (cd/m2)

300

Size

15"

Max. Resolution

1024 x 768

Max. Colors

16.2M

Contrast Ratio

2000:1

General

Power Consumption

50.8W(typical)

Power Input

24VDC +/- 20%

Watchdog Timer

1 ~ 255 sec (system)

Mounting

Panel, wall, desktop, VESA arm

Certifications

BSMI, CCC, CE, FCC Class A, UL

BIOS

AMI UEFI

Cooling System

Fanless design

OS Support

Microsoft® WES7 (32/64 bit), Windows 7/8.1 (32/64 bit), Windows 10 Enterprise LTSB

Weight (Net)

4.4kg

Enclosure Housing

Front bezel: Die-cast Aluminum alloy, Back housing: SECC

Dimensions ( W x D x H )

383.2 x 307.3 x 55.9 mm (15.09 x 12.10 x 2.2 in)

System Hardware

CPU

Intel® Atom? E3845 1.91GHz Quad-core processor

Memory

1 x SO-DIMM with 4GB DDR3L SDRAM (supports up to 8G)

Storage

1 x 2.5" SATA SSD

LAN

10/100/1000 Base-T x 2 LAN (2 x Intel® I210)

Expansion Slots

Full-size Mini PCI-E

I/O

1 x RS-232 1 x RS-232/422/485 1 x USB 3.0 3 x USB 2.0 1 x iDoor slot

Environment

Ingress Protection

Front panel: IP66

Vibration Protection

With SSD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration)

Operating Temperature

-20 ~ 60°C (-4 ~ 140°F)

Storage Temperature

-30 ~ 70°C (-22 ~ 158°F)

Humidity

10 ~ 95% RH @ 40°C, non-condensing

Touchscreen

Lifespan

36 million touches at single point

Light Transmission

Above 75%

Resolution

Linearity

Type

5-wire, analog resistive
