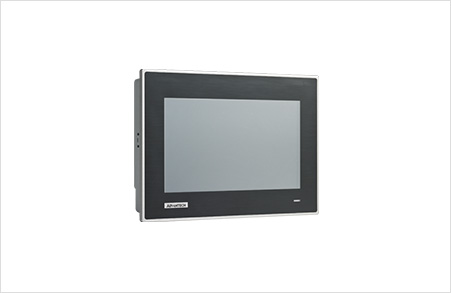

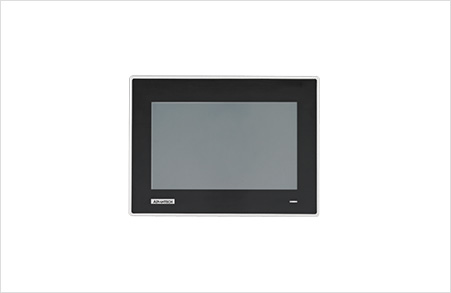

Part Number |
WOP-3070T-C4BE |
General |
|
Certifications |
BSMI, CCC, CE, FCC Class A, UL |
Dimensions |
203.4 x 150 x 43.7 mm (8.01" x 5.91" x 1.72") |
Cut-out Dimensions |
192 x 138.5 mm (7.56" x 5.45") |
OS Support |
Microsoft® Windows CE 6.0 |
Power Input |
24VDC ±10% |
Power Consumption |
7W (Typical) |
Enclosure Housing |
PC + ABS |
Mounting |
Panel |
Weight (Net) |
1 Kg (2.20 lbs) |
System Hardware |
|
CPU |
RISC 32 bits, 600 MHz (ARM® Cortex?-A8) |
Battery Backup Memory |
FRAM 128KB |
Flash Memory |
DDR2 256MB on board |
Storage |
512MB on board SLC type |
Power-On LED |
Yes |

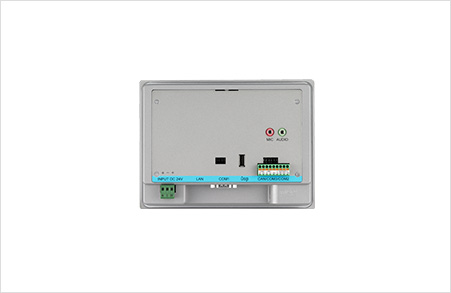

Communications |
|
COM1 |
RS-232/422/485 (DB9 Male) |
COM2 |
RS-422/485 (Terminal Plug 4-Pin) |
COM3 |
RS-485 (Terminal Plug 2-Pin) |
CAN |
Terminal Plug 2-Pin |
Ethernet |
10/100-BaseT |
LCD Display |
|
Display Type |
WVGA TFT LCD |
Max. Resolution |
800 x 480 |
Max. Colors |
64K |
Luminance (cd/m2) |
500 |
Viewing Angle (H/V°) |
140/120 |
Backlight Life |
LED, 50,000 |
Dimming |
Adjustable by touch panel |
Contrast Ratio |
700:1 |
Display |
|
Size |
7 |
Touchscreen |
|
Lifespan |
36 million touches at 8mm-diameter finger point |
Light Transmission |
Transmission Above 80% |
Resolution |
Linearity |
Touch Type |
5-wire, analog resistive |
Environment |
|
Temperature (Operating) |
-20 ~ 60°C (-4 ~ 140°F) |
Temperature (Storage) |
-30 ~ 70°C (-22 ~ 158°F) |
Humidity (Operating) |
10 ~ 90% RH @ 40°C, non-condensing |
Ingress Protection |
Front panel: IP66 |
Vibration Protection |
Operating, radom vibration 1 Grms (5 ~ 500 Hz) |
