Part Number

TPC-1782H-433AE

Display

Type

SXGA TFT LCD with LED backlight

Viewing Angle (H/V°)

160/140

Backlight Life (hrs)

50,000 hrs

Luminance (cd/m2)

350

Size

17"

Max. Resolution

1280 x 1024

Max. Colors

16.2 M

Contrast Ratio

800:1

General

Power Consumption

20W Typical, 60W Max. (Without Add-on card)

Power Input

24VDC +/- 20%

Watchdog Timer

1 ~ 255 sec (system)

Mounting

Desktop, Wall or Panel Mount

Certifications

BSMI, CCC, CE, FCC Class A, UL

BIOS

AMI UEFI

Cooling System

Fanless design

OS Support

Microsoft® Windows WES7 32bit/64bit /WE8S 64bit/ Windows 7 32bit/64bit / Windows 8 64bit/Ubuntu 14.04.2 LTS/Windows 10 IoT Enterprise LTSB

Weight (Net)

6 kg (13.23 lbs)

Enclosure Housing

Front bezel: Die-cast Aluminum alloy, Back housing: PC/ABS Resin

Dimensions

414 x 347.5 x 84 mm (16.3" x 13.68" x 3.31")

System Hardware

CPU

Intel 4th Generation Core i3-4010U 1.7GHz

Memory

4GB DDR3L 1600MHz SO-DIMM SDRAM

Storage

CFast slot x 1, 2.5" SATA SSD slot x 1, mSATA slot x 1 (via Mini PCIe)

Chipset

Lynx Point-LP

LAN

10/100/1000 Base-T x 2 (one port supports iAMT)

Expansion Slots

Half-size PCI-E and Full-size Mini PCI-E

I/O

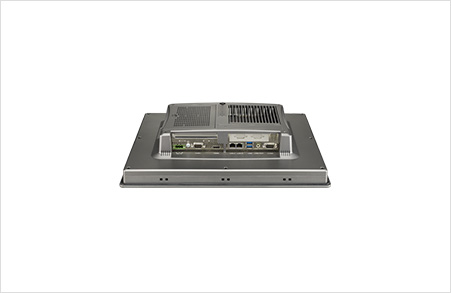

RS-232 x 1, RS-232/422/485 x 1, USB 3.0 x 2, HDMI 1.4 x 1, Audio Line out x 1, USB 2.0 x 1 (optional), Audio MIC x 1 (optional)

Environment

Ingress Protection

Front panel: IP65

Vibration Protection

With HDD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration)

Operating Temperature

0 ~ 55°C (32 ~ 131°F)

Storage Temperature

-20 ~ 60°C (-4 ~ 140°F)

Humidity

10 ~ 95% RH @ 40°C, non-condensing

Touchscreen

Lifespan

36 million touches at single point

Light Transmission

Above 75%

Resolution

Linearity

Type

5-wire, analog resistive
