Let me take you into the world of industrial automation
中文版   |   English

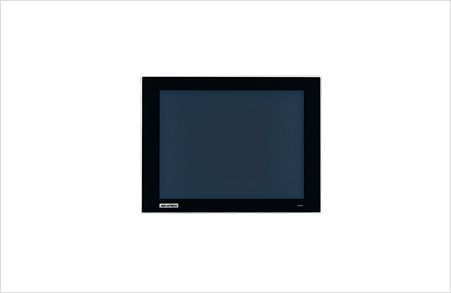

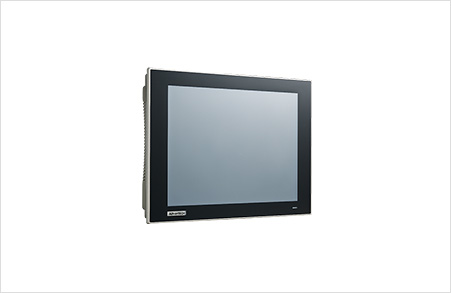

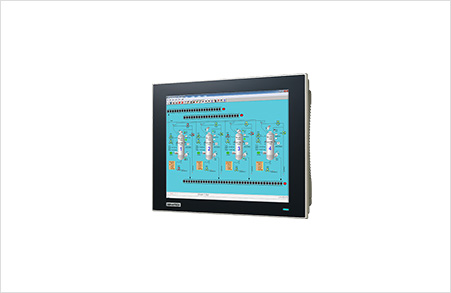

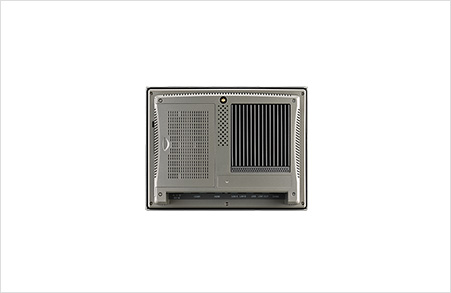

TPC-1282T
工業等級12.1寸TFT液晶顯示器，背光壽命可達50000小時
搭配第五代Intel? Core?處理器，4GB DDR3L內存
緊湊型無風扇系統設計及鋁合金前面板
全平面五線電阻觸摸屏，前面板防護等級 IP66
支持PCIe 及 Mini PCIe 擴展
支持通過iDoor模組進行系統IO及隔離數字IO擴展
支持通過iDoor模組進行工業現場總線擴展
支持通過iDoor模組進行3G/GPS/GPRS/WiFi 通訊擴展
支持通過iDoor模組進行存儲擴展
機殼接地保護
支持HDMI及音頻多媒體
支持研華SNMP代理
支持研華SusiAccess遠程設備管理軟件
規格

Part Number

TPC-1282T-533AE

General

Power Consumption

18W Typical, 60W Max. (Without Add-on card)

Power Input

24 VDC ± 20%

Watchdog Timer

1 ~ 255 sec (system)

Mounting

Desktop, Wall or Panel Mount

Certifications

BSMI, CCC, CE, FCC Class A, UL

Dimensions (W x H x D)

311.8 x 238 x 77.2 mm (12.28" x 9.38" x 3.04")

BIOS

AMI UEFI

Cooling System

Fanless design

Enclosure

Front bezel: Die-cast Aluminum alloy, Back housing: PC/ABS Resin

OS Support

Microsoft® Windows WES7 32bit/64bit /WE8S 64bit/ Windows 7 32bit/64bit / Windows 8 64bit/Ubuntu 14.04.2 LTS/Windows 10 IoT Enterprise LTSB

Weight (Net)

3.2 kg (7.02 lbs)

System Hardware

CPU

Intel 5th Generation Core i3-5010U 2.10GHz

Memory

4GB DDR3L 1600MHz SO-DIMM SDRAM

Storage

CFast slot x 1, 2.5" SATA SSD slot x 1, mSATA slot x 1 (via Mini PCIe)

Chipset

WildcatPoint-LP

LAN

10/100/1000Base-T x 2

Expansion Slots

Half-size PCI-E or full-size Mini PCI-E

I/O

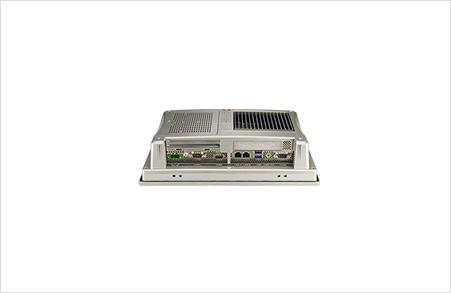

RS-232 x 1, RS-232/422/485 x 1, USB 3.0 x 2, HDMI 1.4 x 1, Audio Line out x 1, USB 2.0 x 1 (optional), Audio MIC x 1 (optional)

LCD Display

Viewing Angle (H/V°)

160, 140

Luminance (cd/m2)

600

Contrast Ratio

700 : 1

Max. Resolution

1024 x 768

Max. Colors

16.2M

Display Type

XGA TFT LED LCD

Display Size

12.1"

Backlight Life

50, 000 hrs

Environment

Ingress Protection

Front panel: IP66

Vibration Protection

With HDD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration)

Operating Temperature

0 ~ 50° C (32 ~ 122° F)

Storage Temperature

-20 ~ 60° C (-4 ~ 140° F)

Humidity

10 ~ 90% RH @ 40°C, non-condensing

Touchscreen

Lifespan

35 million touches at a single point

Light Transmission

81±3%

Resolution

Linearity

Type

5-wire, analog resistive
