Part Number

IPPC-6172A-R2AE

General

BIOS

AMI 64 MB Flash BIOS

Certifications

UL, CE, FCC, CCC, BSMI

Dimensions (W x H x D)

481.93 x 355.87 x 132.5 mm (18.97" x 14.01" x 5.22")

Enclosure

Die-cast flat-sealed front with SGCC Housing

Mounting

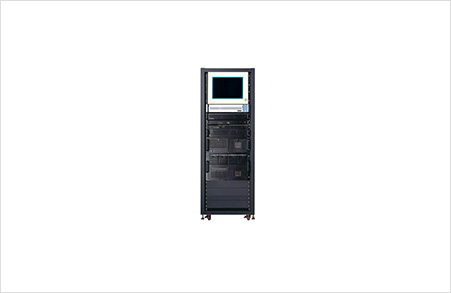

Panel, Rack (option)

OS Support

Microsoft Windows 7, Windows 8

Power Input

100 ~ 240 VAC @ 60 ~ 50 Hz, 7 ~ 3.5 A

Power Supply

350 W

Environment

Humidity

5 ~ 95% @ 40°C (non-condensing)

Ingress Protection

Front panel: IP65

Temperature (Operating)

0 ~ 50° C (32 ~ 122° F)

Temperature (Storage)

-20 ~ 60° C (-4 ~ 140° F)

Vibration Protection

5 ~ 500 Hz, 1 GRMS random vibration

LCD Display

Backlight Life

50,000 hrs

Contrast Ratio

1000:1

Display Size

17"

Display Type

SXGA TFT LCD LED Backlight

Luminance (cd/m2)

350

Max. Colors

16.7M (RGB 6-bit + Hi-FRC data)

Max. Resolution

1280x1024

Viewing Angle (H/V°)

170/160

System Hardware

Chipset

Intel Q87

CPU

Supports Intel® Core? i7/i5/i3 processor (up to 3.1GHz )

Expansion

Two half-length PCI (Standard) Two PCIe x1(Optional) One PCI + One PCIe x4 (Optional)

I/Os

4 (3 x RS-232, 1 x RS-232/422/485 to support auto flow control), 1 x GPIO, 2 x Reservation ports, 5 x USB Host( USB 2.0 front, 4 USB 3.0) 2 x GbE LAN

LAN

10/100/1000Base-T Ethernet x 2

Memory

System supports four DIMM sockets support up to 32GB DDR3 1333/1600 MHz SDRAM

Optical Driver

1 x Slim Type DVD-RW (optional), CFast (optional)

Storage

Supports 2 x 2.5" SATA HDD Interface and Intel Matrix Storage Technology RAID 0/1

Touchscreen

Lifespan

36 million with a silicone rubber of R8 finger, writing rate is by 250g at 2 times/s

Light Transmission

> 80%

Touch Type

Analog Resistive 5 wires
