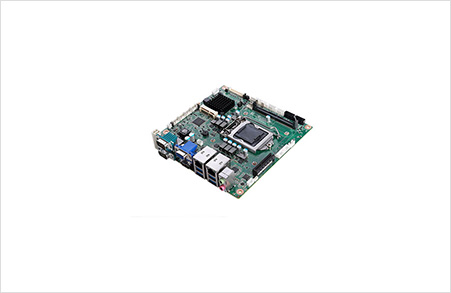

PPC-MB-8260AE
Supports 4 x USB 3.0 , 5 x COM ports, 1 x GPIO (8 channels)
Supports 1 x PCIe x4 (Gen 2) and either 1x Full Size mSATA or Mini PCIe
Supports dual display of VGA/DP/LVDS(eDP)
Supports one 260-pin SO-DIMM of up to 16GB DDR4 2133 MHz
Supports Intel? 6th Gen Core? i processor (LGA1151) with Intel H110 chipset
規(guī)格

Part Number

PPC-MB-8260AE

Processor

CPU

Intel Core i7/i5/i3/Pentium/Celeron

Frequency

2.3 ~ 3.4 GHz

L3 Cache

2 ~ 8MB

CPU TDP

35W

Chipset

H110

Memory

Socket

1 x 260pin SO-DIMM,DDR4,2133MHz, up to 16GB (Non-ECC)

Ethernet

LAN

2 x 10/100/1000 Mbps Ethernet, Intel 211 x 2

I/O

Rear I/O

1 x RS232/422/485,1xRS232,;1 x DP 1.2,;1 x VGA,4 x USB(3.0,)1 x Line-out,1 x Mic-in

Connector

Internal Connector

3 x RS232,1 x GPIO( 8 channels),1x speaker connector,1xLED Connector,2 xUSB2.0,1 x LVDS Connector,1 x Touch Connector,2 x SATA Connector

Watchdog Timer

Watchdog Timer

255 timer levels, set up by software

Expansion

Slots

1 x full-size mSATA or Mini PCIe,1 x PCIex4 slot for riser card

Physical

Dimensions

170 x 170 mm (6.69" x 6.69")

Operating System

Embedded OS Support

Microsoft® Windows 7 32bit&64bit/ Windows 8.1 64bit / Windows 10 64bit
