Part Number

PPC-6120-RAE

Display

Viewing Angle

80°(left), 80°(right), 70°(up), 70°(down)

Power Supply

Input Voltage

12 ~30 VDC

LCD Display

Luminance (cd/m2)

600

Max. Resolution

1024 x 768

Max. Colors

262 K

Display Type

12.1" TFT LED Panel

Pixel Pitch (mm)

0.24 x 0.24

Brightness Control

Yes

Processor System

Memory

2 x SO-DIMM,DDR3 1066/1333; DDR3L 1066/1333, up to 16GB/8GB per SO-DIMM

Storage

1 x 2.5" SATA Bay, 1x mSATA Bay

Bus Expansion

1 x MiniPCIe (Standard), 1 x PCIe x 1 or 1 x PCI through riser (Optional)

Network (LAN)

2 x 10/100/1000 Mbps Ethernet, supports Intel AMT9.0

Watchdog Timer

255 timer levels; setup by software

Speaker

2 x 1W speakers

CPU

4th Generation Intel® Core? i / Celeron® Processor (Thermal Design Power: 35W/45W)

Chipset

Intel Q87

I/O

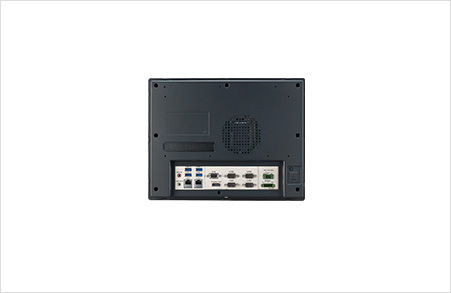

4 x USB3.0 (Ext.), 2 x USB2.0 (Int. pin head), 4 x RS-232 Serial port, 1 x isolated RS422/485, 1 x DB9 GPIO port (8 x TTL level programmable DIO), 1 x DB15 VGA out, 1 x Mic in, 1 x Line out

Touchscreen

Light Transmission

81+/-3%

Resolution

2048 x 2048

Controller

RS-232 interface

Durability (Touches)

36 million

Software Driver Support

Windows 7, 8.1, 10, XP, CE

Touchscreen (Optional)

Type

Analog Resistive 5-wire

OS Support

OS Support

WIN7 / WIN 8.1 / WIN 10 / Linux /WEC7

Physical Characteristics

Dimensions

325 x 253.8 x 73.8 mm

Weight

3.8KG
