Part Number

PPC-6171C-RMAE

PPC-6171C-RTAE

Chassis feature

Storage

2 x 2.5" SATA HDD bay

1 x 2.5" SATA HDD bay

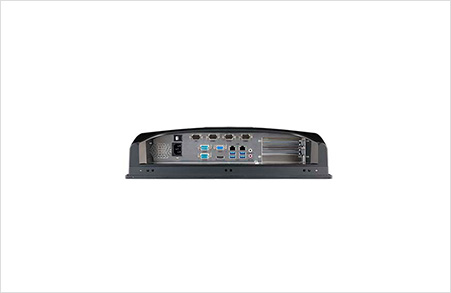

I/O ports

1 x AC inlet;1 x Power Switch;1 x DP port (input, for connecting M/B and LVDS panel);1 x USB 2.0 (input, for connecting M/B and touch controller);Reserved opening:Based on M/B's specific

1 x AC inlet;1 x Power Switch;Reserved opening:Based on M/B PPC-MB-8260AE's specific

Expansion

1 x PCIe x4 or 1 x PCI (in the accessory box)

1 x PCIe x4 or 2 x PCI (in the accessory box);2 x PCIe x1 (optional);1 x PCIe x1 + 1 x PCI (optional)

Speaker

2 X 1W

2 X 1W

Fan

2 x 12V, 60 x 60 x 15 mm

2 x 12V, 60 x 60 x 15 mm

Physical Characteristics

Dimensions

437 x 357 x 107.6 mm (17.2" x 14.06" x 4.2")

437 x 357 x 107.6 mm (17.2" x 14.06" x 4.2")

Weight

5.4 kg (11.90 lb)

5.4 kg (11.90 lb)

OS Support

OS Support

According to motherboard specifications

According to motherboard specifications

Power Supply

Input Voltage

100 ~ 240 VAC, 250W

100 ~ 240 VAC, 250W

LCD Display

Display Type

17" TFT LED Panel

17" TFT LED Panel

Max. Resolution

1280x1024

1280x1024

Viewing Angle (H/V°)

80 (left), 80 (right), 60 (up), 80 (down)

80 (left), 80 (right), 60 (up), 80 (down)

Luminance (cd/m2)

350

350

Contrast Ratio

800:1

800:1

Backlight Life

50,000 hrs

50,000 hrs

Touch Screen

Type

Analog Resistive 5-wire/Projected capacitive type (optional)

Analog Resistive 5-wire/Projected capacitive type (optional)

Light transmission

80+/-5%

80+/-5%

Controller

USB interface

USB interface

Durability (Touches)

35 million

35 million

Environment

Operating Temperature

0 ~ 50 °C (32 ~ 122 °F);0 ~ 45 °C (32 ~ 113 °F) with VESA mount module

0 ~ 50 °C (32 ~ 122 °F);0 ~ 45 °C (32 ~ 113 °F) with VESA mount module

Storage Temperature

-40 ~ 60°C (-40~140°F)

-40 ~ 60°C (-40~140°F)

Relative Humidity (Non-condensing)

10 ~ 95% @ 40°C (non-condensing)

10 ~ 95% @ 40°C (non-condensing)

Shock

Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27

Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27

Vibration

Operating: Random vibration test 5 ~ 500 Hz, 1 Grms @ with HDD, IEC 60068-2-64 compliant

Operating: Random vibration test 5 ~ 500 Hz, 1 Grms @ with HDD, IEC 60068-2-64 compliant

EMC

CE, FCC Class A

CE, FCC Class A

Safety

CB,CCC,UL

BSMI,CB,CCC,UL

Front Panel Protection

IP65 Compliant

IP65 Compliant
