Part Number

PPC-3100-RE9A

Processor System

CPU

Intel® Atom? E3940 quad core

Frequency

1.6 GHz

L3 Cache

2M

Memory

1 x SODIMM DDR3L 1866 MHz (max. 8 GB)

Storage

1 x 2.5" SATA bay

Network (LAN)

2 x 10/100/1000 Mbps Ethernet (Intel I210)

I/O Ports

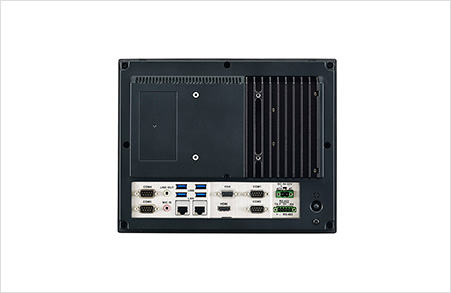

5 x Serial ports: 4 x RS-232, 1 x isolated RS-422/485 (Adjustable through BIOS) ;4 x USB 3.0;1 x Line-out, 1 x Mic-in;1 x VGA;1 x HDMI;1 x GPIO (8 channels, TTL level, internal)

Expansion Slots

1 x Mini PCIe

Watchdog Timer

255 timer levels; setup by software

Speaker

2 x 1W

Physical Characteristics

Dimensions

271.8 x 216.8 x 57.5 mm (10.7 x 8.53 x 2.26 in)

Weight

2.8 kg (6.17 lb)

OS Support

OS Support

Microsoft® Windows 10 IoT Enterprise, Linux, Android 6.0 Marshmallow

Power Supply

Input Voltage

9-32 VDC

Power Consumption

30W (Burn-in test 7.0 in Windows 7 32 bit)

Display

Display Type

10.4" TFT LCD (LED Backlight)

Max. Resolution

800 x 600

Viewing Angle

80 (left), 80 (right), 70 (up), 70 (down)

Luminance (cd/m2)

400

Backlight Life (hrs)

30, 000 hrs (typical)

Touchscreen

Touch Type

Analog resistive (5-wire)

Light Transmission

80% ±5

Controller

USB interface

Durability (Touches)

Greater than 35 million touches in one location without failure

Environment

Operating Temperature

0 ~ 50° C (32 ~ 122° F)

Storage Temperature

-30 ~ 60°C (-22 ~ 140°F)

Safety

CB, CCC, BSMI, UL

Relative Humidity

10 ~ 95% @ 40° C (non-condensing)

Shock Protection

Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27

Vibration Protection

Operating Random Vibration Test 5~500Hz, 1Grms @with HDD; 2Grms @with SSD, follow IEC 60068-2-64

EMC

CE, FCC Class B, BSMI

Front Panel Protection

IP65 Compliant
