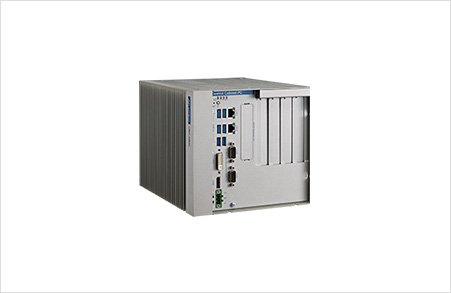

UNO-3285C
Intel? 第六代 Core? i7-6822EQ 四核處理器， 8GB DDR4 內存
2 x GbE, 6 x USB 3.0, 2 x RS-232/422/485, 2 x RS-232 (針接頭), 1 x DVI-I, 1 x HDMI
2 x PCIe x8, 2 x PCI, 2 x mPCIe (2 x full), 1x CFast 插槽, 1 x mSATA 插槽 (可選)
拇指螺絲設計，方便維護
雙可熱插拔存儲，支持RAID 0/1
支持通過iDoor模塊擴展工業現場總線協議
帶有電源冗余功能的雙電源輸入
可選ECC RAM
前面板LED指示燈設計，可隨時監控設備狀態
規格

Part Number

UNO-3285C-674AE

General

Dimensions ( W x D x H )

196.6 x 238 x 177 mm (7.9" x 9.4" x 7")

Form factor

Regular Size

Mounting

Stand mount

Power Consumption

90W (Typical @ 24V); 120W (Max. @ 24V)

Power Requirement

10~36 VDC

Weight (Net)

4.7 kg (10.3 lbs)

OS Support

WIN7/8/10, WES7, Win10 Ent. LTSB, AdvLinuxTu

Certifications

CE, UL, CCC, FCC, BSMI

System Hardware

Expansion

2 x Full-size mPCIe, 2 x PCIex8, 2 x PCI (Optional by project: 4 x PCI)

LED Indicators

LEDs for Power, LAN , Tx/Rx , battery and HDD

Storage

One mSATA slot; One CFast slot (sh) Two built-in 2.5" SATA HDD brackets with support for RAID 0/1. (Compatible with 9.5mm height HDD)

Ethernet

LAN A: Intel® i210-IT GbE, IIEEE802.1AS, 802.3az, LAN B: Intel® i219-LM GbE, Intel® AMT, IEEE802.1AS, 802.3az

Graphics Engine

Intel® HD Graphics

Processor

Intel® Core? i7-6822EQ 2.0GHz Quad Core, 8MB L2

System Chip

Intel QM170

Memory

Built-in 8GB DDR4 2133 MHz, two sockets support up to 32GB

Watchdog Timer

Programmable 256 levels timer interval, from 1 to 255 sec

BIOS

AMI UEFI 128Mbit Flash BIOS

I/O Interface

Power Connector

3 Pin, terminal Block to support dual power input

Displays

1 x DVI-I, supports 1920 x 1080 @ 60Hz 24bpp, 1 x HDMI 1.4a, supports 1920 x 1080 @ 24Hz 24bpp

USB Port

6 x USB 3.0 Ports

LAN Ports

1 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet

Serial Ports

2 x RS-232/422/485 with DB9 connectors RS-485 auto flow control, 50~115.2kbps

Environment

Shock Protection

Operating, IEC 60068-2-27, 50G, half sine, 11ms (SSD)

Vibration Protection

Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (SSD)

Operating Temperature

-20 ~ 60°C (-4 ~ 140°F) with 0.7m/s airflow environment

Storage Temperature

-40 ~ 85°C ( -40 ~ 185°F)

Relative Humidity

10 ~ 95% RH @ 40°C, non-condensing
