Part Number

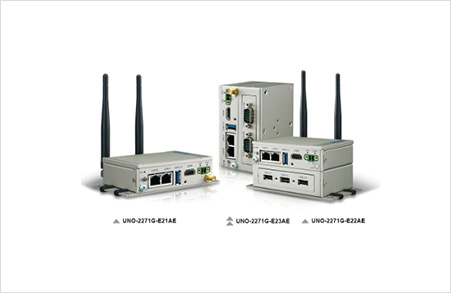

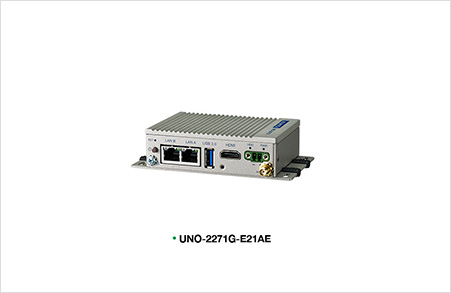

UNO-2271G-E21AE

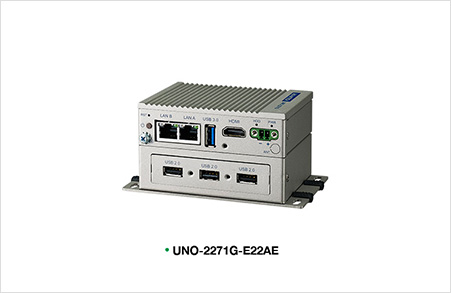

UNO-2271G-E22AE

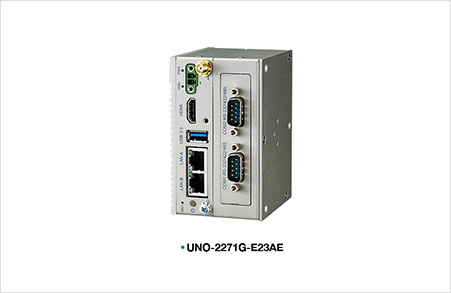

UNO-2271G-E23AE

Environment

Ingress Protection

IP30

IP30

IP30

Vibration Protection

Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA)

Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA)

Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA)

Relative Humidity

10 ~ 95% RH @ 40°C, non-condensing

10 ~ 95% RH @ 40°C, non-condensing

10 ~ 95% RH @ 40°C, non-condensing

Shock Protection

Operating, IEC 60068-2-27, 50G, half sine, 11ms

Operating, IEC 60068-2-27, 50G, half sine, 11ms

Operating, IEC 60068-2-27, 50G, half sine, 11ms

Storage Temperature

- 20 ~ 70°C ( -4 ~ 158°F)

- 20 ~ 70°C ( -4 ~ 158°F)

- 20 ~ 70°C ( -4 ~ 158°F)

Operating Temperature

0 ~ 50°C (32 ~ 122°F) @ 5 ~ 85% RH with 0.7 m/s airflow

0 ~ 50°C (32 ~ 122°F) @ 5 ~ 85% RH with 0.7 m/s airflow

0 ~ 50°C (32 ~ 122°F) @ 5 ~ 85% RH with 0.7 m/s airflow

I/O Interface

Displays

1 x HDMI, supports 1920 x 1080 @ 60Hz

1 x HDMI, supports 1920 x 1080 @ 60Hz

1 x HDMI, supports 1920 x 1080 @ 60Hz

Power Connector

1x 2 Pins, Terminal Block

1x 2 Pins, Terminal Block

1x 2 Pins, Terminal Block

USB Port

1 x USB 3.0

3 x USB 2.0 and 1 x USB 3.0

1 x USB 3.0

LAN Ports

2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet

2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet

2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet

Serial Ports

N/A

N/A

2 x RS 232/422/485

System Hardware

Expansion

2 Full-size mPCIe

2 Full-size mPCIe

2 Full-size mPCIe

LED Indicators

LEDs for Power, HDD, LAN (Active,Status)

LEDs for Power, HDD, LAN (Active,Status)

LEDs for Power, HDD, LAN (Active,Status)

Storage

Onboard 32GB eMMC (Option mSATA shared with mPCIe slot)

Onboard 32GB eMMC (Option mSATA shared with mPCIe slot)

Onboard 32GB eMMC (Option mSATA shared with mPCIe slot)

Ethernet

Realtek RTL8111E GbE, 802.10av

Realtek RTL8111E GbE, 802.10av

Realtek RTL8111E GbE, 802.10av

Graphics Engine

Intel® HD Graphics

Intel® HD Graphics

Intel® HD Graphics

Memory

Onboard 4GB DDR3L 1066 MHz

Onboard 4GB DDR3L 1066 MHz

Onboard 4GB DDR3L 1066 MHz

Processor

Intel Atom E3815 Single Core 1.46GHz/ Intel Atom E3825 Dual Core 1.33Ghz

Intel Atom E3815 Single Core 1.46GHz/ Intel Atom E3825 Dual Core 1.33Ghz

Intel Atom E3815 Single Core 1.46GHz/ Intel Atom E3825 Dual Core 1.33Ghz

System Chip

Integrated Intel SoC Chipset

Integrated Intel SoC Chipset

Integrated Intel SoC Chipset

Watchdog Timer

Programmable 256 levels timer interval, from 1 to 255 sec

Programmable 256 levels timer interval, from 1 to 255 sec

Programmable 256 levels timer interval, from 1 to 255 sec

BIOS

AMI EFI64 Mbit

AMI EFI64 Mbit

AMI EFI64 Mbit

General

OS Support

For mSATA storage: Windows7, Windows10 LTSB, Advantech Linux. For eMMC storage: Advantech embedded customized Windows7 64bits, Windows 10 LTSB, Advantech Linux

For mSATA storage: Windows7, Windows10 LTSB, Advantech Linux. For eMMC storage: Advantech embedded customized Windows7 64bits, Windows 10 LTSB, Advantech Linux

For mSATA storage: Windows7, Windows10 LTSB, Advantech Linux. For eMMC storage: Advantech embedded customized Windows7 64bits, Windows 10 LTSB, Advantech Linux

Power Requirement

10 ~ 30 VDC

10 ~ 30 VDC

10 ~ 30 VDC

Power Consumption

12W (Typical), 24W (Max)

12W (Typical), 24W (Max)

12W (Typical), 24W (Max)

Weight

0.5 kg

0.6 kg

0.6 kg

Enclosure

Aluminum Housing

Aluminum Housing

Aluminum Housing

Form factor

Pocket Size

Micro Size

Micro Size

Mounting

Stand, Wall, VESA (Optional), DIN-rail (Optional), Pole (Optional)

Stand, Wall, VESA (Optional), DIN-rail (Optional), Pole (Optional)

Stand, Wall, VESA (Optional), DIN-rail (Optional), Pole (Optional)

Dimensions

100 x 70 x 30 mm

100 x 70 x 65 mm

100 x 70 x 65 mm

Certifications

CE, FCC, UL, CCC, BSMI

CE, FCC, UL, CCC, BSMI

CE, FCC, UL, CCC, BSMI
