UNO-2372G
Intel??Atom Baytrial E3845四核處理器，最高可達1.91GHz，4G DDR3L內存
無線纜強固型設計
2 x GbE, 4 x USB, 4 x RS-232/422/485, 1 x HDMI, 1 x DP
模組化設計，可通過第二擴展層進行功能擴充
緊湊型無風扇設計
橡膠防滑墊設計，多種安裝方式可選：立式安裝、導軌安裝、VESA安裝
可選3G/GPS/GPRS/Wi-Fi 通訊模塊
規格

Part Number

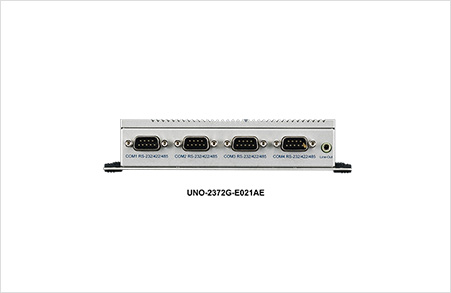

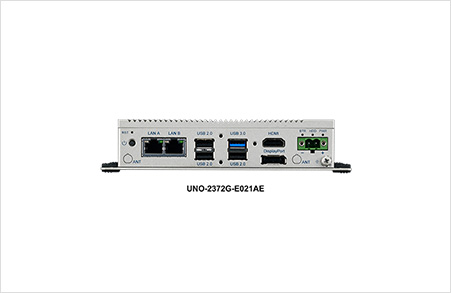

UNO-2372G-E021AE

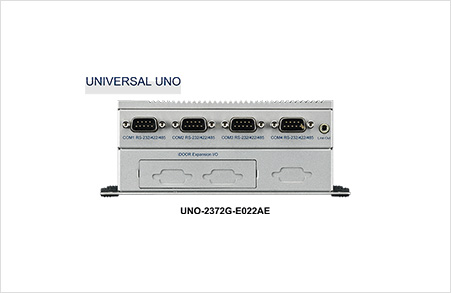

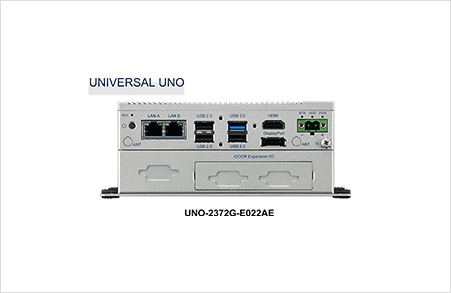

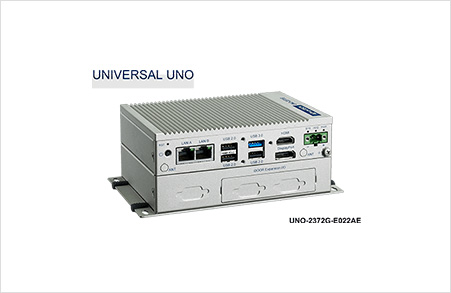

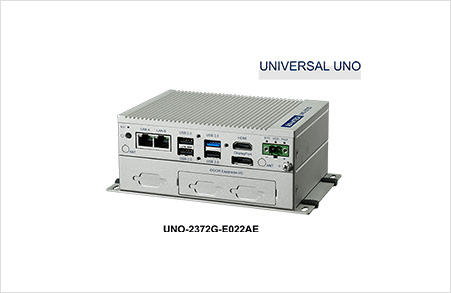

UNO-2372G-E022AE

General

Power Consumption

30W (Typical), 42W (Max)

30W (Typical), 42W (Max)

Certifications

CE, FCC, UL, CCC, BSMI

CE, FCC, UL, CCC, BSMI

Mounting

Stand, Wall, VESA (Optional), Din-rail (Optional)

Stand, Wall, VESA (Optional), Din-rail (Optional)

Enclosure

Aluminum Housing

Aluminum Housing

OS Support

Microsoft® Windows 7, Windows 10, Advantech Linux

Microsoft® Windows 7, Windows 10, Advantech Linux

Weight (Net)

1 Kg (2.20 lbs)

1 Kg (2.20 lbs)

Power Requirement

10~36 VDC

10~36 VDC

Form factor

Small Size

Small Size

Dimensions ( W x D x H )

150 x 105 x 35mm (5.8" x 4.2" x 1.4")

150 x 105 x 35mm (5.8" x 4.2" x 1.4")

System Hardware

Memory

Built-in 4GB DDR3L 1333 MHz (Up to 8GB)

Built-in 4GB DDR3L 1333 MHz (Up to 8GB)

Storage

1 x mSATA shared with mPCIe slot, 1 x drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD)

1 x mSATA shared with mPCIe slot, 1 x drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD)

Watchdog Timer

Programmable 255 levels timer interval, from 1 to 255 sec

Programmable 255 levels timer interval, from 1 to 255 sec

Expansion

2 Full-size mPCIe

2 Full-size mPCIe

BIOS

AMI EFI64 Mbit

AMI EFI64 Mbit

Processor

Intel® Atom Quad Core E3845 1.91GHz / Intel® Celeron® Quad Core J1900, 2GHz

Intel® Atom Quad Core E3845 1.91GHz / Intel® Celeron® Quad Core J1900, 2GHz

Graphics Engine

Intel® HD Graphics

Intel® HD Graphics

Ethernet

Intel i210 GbE, 802.10av, IEEE1588/802.1AS, 803.3az

Intel i210 GbE, 802.10av, IEEE1588/802.1AS, 803.3az

LED Indicators

LEDs for Power, RTC battery, LAN (Active, Status) and HDD

LEDs for Power, RTC battery, LAN (Active, Status) and HDD

I/O Interface

Serial Ports

4 x RS232/422/485, DB9, 50 ~ 115.2kbps

4 x RS232/422/485, DB9, 50 ~ 115.2kbps

Displays

1 x DisplayPort 1.2, supports 2560x1440p @60Hz ; 1 x HDMI v1.4, supports 1920x1080p @60Hz

1 x DisplayPort 1.2, supports 2560x1440p @60Hz ; 1 x HDMI v1.4, supports 1920x1080p @60Hz

USB Port

1 x USB 3.0, 3 x USB 2.0 Compliant

1 x USB 3.0, 3 x USB 2.0 Compliant

Power Connector

1x 2 Pins, Terminal Block

1x 2 Pins, Terminal Block

LAN Ports

2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet

2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet

Environment

Relative Humidity

10 ~ 95% @ 40°C non-condensing

10 ~ 95% @ 40°C non-condensing

Vibration Protection

Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA), Operating, IEC 60068-2-64, 0.75Grms, random, 5 ~ 500Hz, 1hr/axis (HDD)

Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA), Operating, IEC 60068-2-64, 0.75Grms, random, 5 ~ 500Hz, 1hr/axis (HDD)

Ingress Protection

IP40

IP40

Shock Protection

Operating, IEC 60068-2-27, 50G, half sine, 11ms

Operating, IEC 60068-2-27, 50G, half sine, 11ms

Operating Temperature

- 20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow

- 20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow

Storage Temperature

-40 ~ 85°C ( -40 ~ 185°F)

-40 ~ 85°C ( -40 ~ 185°F)
