Let me take you into the world of industrial automation
中文版   |   English

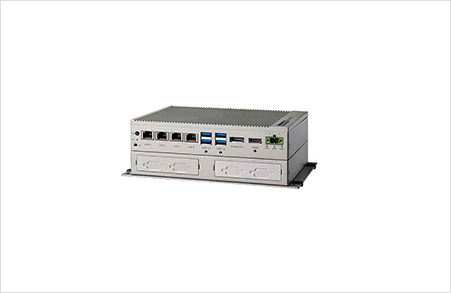

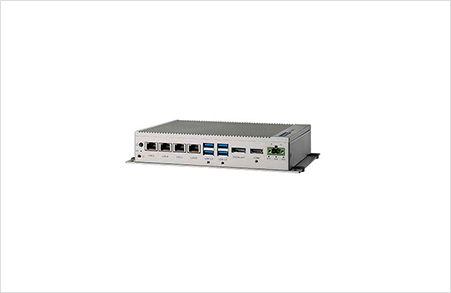

UNO-2484G(7TH GEN INTEL CORE I)
搭配Intel?Core?i7/i5/i3處理器，內置8GB DDR4內存
4 x GbE, 4 x USB 3.0, 1 x HDMI, 1 x DP, 4 x RS232/422/485
可堆棧第二層擴展層，實現最高4個iDoor模塊擴展，方便用戶客制化
緊湊型無風扇設計
堅固的零電纜和可鎖定的I/O設計
專為硬件安全設計的TPM2.0微控制器
可通過iDoor模塊擴展多種I/O
可通過iDoor模塊實現現場總線協議擴展
可通過iDoor模塊實現3G/GPS/GPRS/Wi-Fi通訊擴展
支持超過30種iDoor模塊
規格

Part Number

UNO-2484G-7331AE

UNO-2484G-7332AE

UNO-2484G-7531AE

UNO-2484G-7532AE

UNO-2484G-7731AE

UNO-2484G-7732AE

Environment

Ingress Protection

IP40

IP40

IP40

IP40

IP40

IP40

Operating Temperature

-20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow

-20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow

-20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow

-20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow

-20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow

-20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow

Relative Humidity

10 ~ 95% @ 40° C (non-condensing)

10 ~ 95% @ 40° C (non-condensing)

10 ~ 95% @ 40° C (non-condensing)

10 ~ 95% @ 40° C (non-condensing)

10 ~ 95% @ 40° C (non-condensing)

10 ~ 95% @ 40° C (non-condensing)

Shock Protection

Operating, IEC 60068-2-27, 50G, half sine, 11ms

Operating, IEC 60068-2-27, 50G, half sine, 11ms

Operating, IEC 60068-2-27, 50G, half sine, 11ms

Operating, IEC 60068-2-27, 50G, half sine, 11ms

Operating, IEC 60068-2-27, 50G, half sine, 11ms

Operating, IEC 60068-2-27, 50G, half sine, 11ms

Storage Temperature

-40 ~ 85°C (-40~185°F)

-40 ~ 85°C (-40~185°F)

-40 ~ 85°C (-40~185°F)

-40 ~ 85°C (-40~185°F)

-40 ~ 85°C (-40~185°F)

-40 ~ 85°C (-40~185°F)

Vibration Protection

Operating, IEC 60068-2-64, 3 Grms, random, 5 ~ 500Hz, 1 hr/axis

Operating, IEC 60068-2-64, 3 Grms, random, 5 ~ 500Hz, 1 hr/axis

Operating, IEC 60068-2-64, 3 Grms, random, 5 ~ 500Hz, 1 hr/axis

Operating, IEC 60068-2-64, 3 Grms, random, 5 ~ 500Hz, 1 hr/axis

Operating, IEC 60068-2-64, 3 Grms, random, 5 ~ 500Hz, 1 hr/axis

Operating, IEC 60068-2-64, 3 Grms, random, 5 ~ 500Hz, 1 hr/axis

General

Certifications

CE, FCC, UL, CCC, BSMI

CE, FCC, UL, CCC, BSMI

CE, FCC, UL, CCC, BSMI

CE, FCC, UL, CCC, BSMI

CE, FCC, UL, CCC, BSMI

CE, FCC, UL, CCC, BSMI

Dimensions (W x H x D)

252 x 149 x 62 mm (9.9" x 5.9" x 2.4")

252 x 149 x 62 mm (9.9" x 5.9" x 2.4")

252 x 149 x 62 mm (9.9" x 5.9" x 2.4")

252 x 149 x 62 mm (9.9" x 5.9" x 2.4")

252 x 149 x 62 mm (9.9" x 5.9" x 2.4")

252 x 149 x 62 mm (9.9" x 5.9" x 2.4")

Enclosure

Aluminum Housing

Aluminum Housing

Aluminum Housing

Aluminum Housing

Aluminum Housing

Aluminum Housing

Power Consumption

28W (Typical), 72W(Max)

28W (Typical), 72W(Max)

28W (Typical), 72W(Max)

28W (Typical), 72W(Max)

28W (Typical), 72W(Max)

28W (Typical), 72W(Max)

Power Requirement

24VDC ± 20%

24VDC ± 20%

24VDC ± 20%

24VDC ± 20%

24VDC ± 20%

24VDC ± 20%

Weight (Net)

1.6kg (3.5lbs)

1.6kg (3.5lbs)

1.6kg (3.5lbs)

1.6kg (3.5lbs)

1.6kg (3.5lbs)

1.6kg (3.5lbs)

OS Support

Windows 10, Advantech Linux

Microsoft® Windows 7/8

Microsoft® Windows 7/8

Microsoft® Windows 7/8

Microsoft® Windows 7/8

Microsoft® Windows 7/8

Form factor

Regular Size with stackable design

Regular Size with stackable design

Regular Size with stackable design

Regular Size with stackable design

Regular Size with stackable design

Regular Size with stackable design

Mounting

Stand, Wall, VESA (Optional), Din-rail (Optional)

Stand, Wall, VESA (Optional)

Stand, Wall, VESA (Optional)

Stand, Wall, VESA (Optional)

Stand, Wall, VESA (Optional)

Stand, Wall, VESA (Optional)

I/O Interface

Audio

Line-In, Line-Out

Line-In, Line-Out

Line-In, Line-Out

Line-In, Line-Out

Line-In, Line-Out

Line-In, Line-Out

Displays

1 x VGA, supports 1920x1200@60Hz 24bpp, 1 x HDMI 1.4a, supports 3200x2000@60Hz 24bpp

1 x VGA, supports 1920x1200@60Hz 24bpp, 1 x HDMI 1.4a, supports 3200x2000@60Hz 24bpp

1 x VGA, supports 1920x1200@60Hz 24bpp, 1 x HDMI 1.4a, supports 3200x2000@60Hz 24bpp

1 x VGA, supports 1920x1200@60Hz 24bpp, 1 x HDMI 1.4a, supports 3200x2000@60Hz 24bpp

1 x VGA, supports 1920x1200@60Hz 24bpp, 1 x HDMI 1.4a, supports 3200x2000@60Hz 24bpp

1 x VGA, supports 1920x1200@60Hz 24bpp, 1 x HDMI 1.4a, supports 3200x2000@60Hz 24bpp

Grounding Protection

Chassis Grounding

Chassis Grounding

Chassis Grounding

Chassis Grounding

Chassis Grounding

Chassis Grounding

LAN

4 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet

4 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet

4 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet

4 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet

4 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet

4 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet

Power Connector

1 x 3 Pins, Terminal Block

1 x 3 Pins, Terminal Block

1 x 3 Pins, Terminal Block

1 x 3 Pins, Terminal Block

1 x 3 Pins, Terminal Block

1 x 3 Pins, Terminal Block

Serial Ports

2x RS-232, DB9, 50~115.2kbps, 2x RS-422/485, DB9, auto flow control, 50~115.2kbps

2x RS-232, DB9, 50~115.2kbps, 2x RS-422/485, DB9, auto flow control, 50~115.2kbps

2x RS-232, DB9, 50~115.2kbps, 2x RS-422/485, DB9, auto flow control, 50~115.2kbps

2x RS-232, DB9, 50~115.2kbps, 2x RS-422/485, DB9, auto flow control, 50~115.2kbps

2x RS-232, DB9, 50~115.2kbps, 2x RS-422/485, DB9, auto flow control, 50~115.2kbps

2x RS-232, DB9, 50~115.2kbps, 2x RS-422/485, DB9, auto flow control, 50~115.2kbps

USB Port

4 x USB Ports (2 x USB2.0, 2 x USB3.0 compliant)

4 x USB Ports (2 x USB2.0, 2 x USB3.0 compliant)

4 x USB Ports (2 x USB2.0, 2 x USB3.0 compliant)

4 x USB Ports (2 x USB2.0, 2 x USB3.0 compliant)

4 x USB Ports (2 x USB2.0, 2 x USB3.0 compliant)

4 x USB Ports (2 x USB2.0, 2 x USB3.0 compliant)

System Hardware

BIOS

AMI UEFI 128Mbit Flash BIOS

AMI UEFI 128Mbit Flash BIOS

AMI UEFI 128Mbit Flash BIOS

AMI UEFI 128Mbit Flash BIOS

AMI UEFI 128Mbit Flash BIOS

AMI UEFI 128Mbit Flash BIOS

Expansion

2 x Full-size mPCIe slot, mPCIe 2.0

2 x Full-size mPCIe slot, mPCIe 2.0

2 x Full-size mPCIe slot, mPCIe 2.0

2 x Full-size mPCIe slot, mPCIe 2.0

2 x Full-size mPCIe slot, mPCIe 2.0

2 x Full-size mPCIe slot, mPCIe 2.0

Graphics Engine

Intel® HD Graphics 5000/4400

Intel® HD Graphics 5000/4400

Intel® HD Graphics 5000/4400

Intel® HD Graphics 5000/4400

Intel® HD Graphics 5000/4400

Intel® HD Graphics 5000/4400

LED Indicators

LEDs for Power, battery, LAN (Active, Status), Tx/Rx and HDD

LEDs for Power, battery, LAN (Active, Status), Tx/Rx and HDD

LEDs for Power, battery, LAN (Active, Status), Tx/Rx and HDD

LEDs for Power, battery, LAN (Active, Status), Tx/Rx and HDD

LEDs for Power, battery, LAN (Active, Status), Tx/Rx and HDD

LEDs for Power, battery, LAN (Active, Status), Tx/Rx and HDD

Memory

On-board 4GB DDR3L 1333/1600 MHz

On-board 4GB DDR3L 1333/1600 MHz

On-board 4GB DDR3L 1333/1600 MHz

On-board 4GB DDR3L 1333/1600 MHz

On-board 4GB DDR3L 1333/1600 MHz

On-board 4GB DDR3L 1333/1600 MHz

Processor

Intel® 4th Gen Core? i7-4650U ULT 1.7 GHz Dual Core, 4MB L2

Intel® 4th Gen Core? i7-4650U ULT 1.7 GHz Dual Core, 4MB L2

Intel® 4th Gen Core? i7-4650U ULT 1.7 GHz Dual Core, 4MB L2

Intel® 4th Gen Core? i7-4650U ULT 1.7 GHz Dual Core, 4MB L2

Intel® 4th Gen Core? i7-4650U ULT 1.7 GHz Dual Core, 4MB L2

Intel® 4th Gen Core? i7-4650U ULT 1.7 GHz Dual Core, 4MB L2

Storage

One mSATA, Two drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD), CFast drive by iDoor Technology (Optional)

One mSATA, Two drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD), CFast drive by iDoor Technology (Optional)

One mSATA, Two drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD), CFast drive by iDoor Technology (Optional)

One mSATA, Two drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD), CFast drive by iDoor Technology (Optional)

One mSATA, Two drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD), CFast drive by iDoor Technology (Optional)

One mSATA, Two drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD), CFast drive by iDoor Technology (Optional)

System Chip

Integrated Intel 8 Series Chipset

Integrated Intel 8 Series Chipset

Integrated Intel 8 Series Chipset

Integrated Intel 8 Series Chipset

Integrated Intel 8 Series Chipset

Integrated Intel 8 Series Chipset

Watchdog Timer

Programmable 256 levels timer interval, from 1 to 255 sec

Programmable 256 levels timer interval, from 1 to 255 sec

Programmable 256 levels timer interval, from 1 to 255 sec

Programmable 256 levels timer interval, from 1 to 255 sec

Programmable 256 levels timer interval, from 1 to 255 sec

Programmable 256 levels timer interval, from 1 to 255 sec
