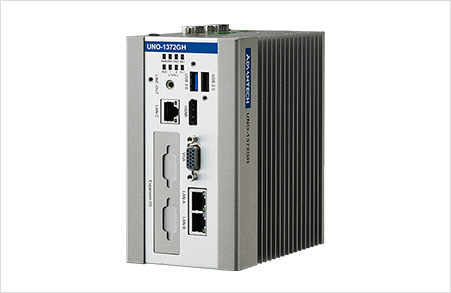

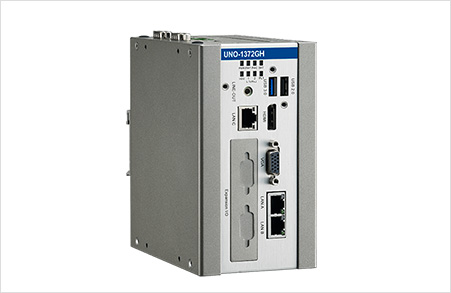

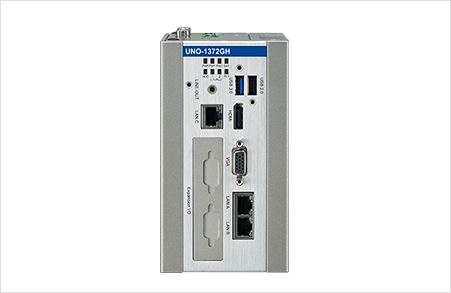

UNO-1372GH
通過Class I，Division 2認證，滿足危險場所應用需求
英特爾?凌動?E3845 1.91GHz處理器，4GB DDR3L內存
3×GbE, 3×USB, 2×COM, 1×VGA, 1×HDMI, Audio, iDoor, mSATA,
2×mPCIe, 1×SATA, 8×DI/DO, 1×電力終端
帶有可鎖定I/O套件，無產生火花的危險
雙電源輸入，縮短宕機時間
RTC電池可從頂部開蓋處直接更換
帶隔離保護的數字I/O，用于傳感和控制
支持通過iDoor擴展多種系統I/O及現場總線協議，實現協議網關功能
支持通過iDoor擴展3G/GPS/GPRS/Wi-Fi通訊，實現通訊網關功能
支持通過iDoor擴展MRAM存儲
機殼接地保護
網絡冗余功能
規格

Part Number

UNO-1372GH-E3AE

General

Certifications

CE, FCC, UL, CCC, BSMI Class I, Division 2, Groups A,B,C,D, Hazardous Location, Temperature code: T4A, Ambient Temperature Range: -20°C - 60°C

Enclosure

Aluminum Housing

Mounting

DIN-rail, Wallmount

Power Consumption

24 W (Typical)

OS Support

Microsoft® Windows 7/8, WES7,WIN10 Ent. LTSB, AdvLinux

Weight (Net)

1.6kg (3.5lbs)

Power Requirement

9~36VDC (Recommend 12/24 VDC)

Dimensions

85 x 139 x 152 mm (3.3" x 5.5" x 6.0")

Form factor

Small Size

System Hardware

Memory

Built-in 4GB DDR3L 1333 MHz (Up to 8GB)

Expansion

2 Full-size mPCIe

Watchdog Timer

Programmable 255 levels timer interval, from 1 to 255 sec

Storage

1 x mSATA slot ; 1 x drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD)

BIOS

AMI UEFI 128Mbit Flash BIOS

Processor

Intel Atom E3845 1.91GHz, 2MB L2 Cache

System Chip

Intel Atom SoC integrated

Graphics Engine

Intel® HD Graphics

LED Indicators

LEDs for Power, RTC battery, LAN (Active, Status), COM (Tx/Rx), HDD, Programmable LED

Ethernet

LAN A, B: Intel® i210-IT GbE, 802.1Qav, 802.1AS, 802.3az LAN C: Realtek RTL8111E GbE

I/O Interface

Serial Ports

1 x RS-485, Terminal, 50~115.2kbps, 3 x RS-232/485, DB9, 50~115.2kbps

Audio

Line-out

Displays

1 x VGA, supports 1920x1200@60Hz 24bpp, 1 x HDMI 1.4a, supports 1920x1080@60Hz 24bpp

LAN Ports

3 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet

USB

3 x USB Ports (2 x USB2.0, 1 x USB 3.0)

Isolated DI/O

4-ch digital input, 4-ch digital output (2500 VDC)

Power Connector

1 x 4 Pins, Terminal Block to support dual power input

Environment

Relative Humidity

95% RH @ 40°C, non-condensing

Ingress Protection

IP40

Shock Protection

Operating, IEC 60068-2-27, 50G, half sine, 11ms

Vibration Protection

Operating, IEC 60068-2-64, 1Grms, random, 5 ~ 500Hz, 1 hr/axis

Operating Temperature

- 20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow (Industry SSD)

Storage Temperature

-40 ~ 85°C ( -40 ~ 185°F)
