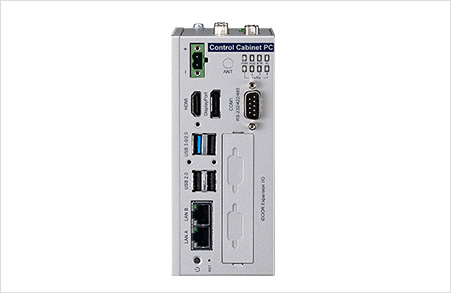

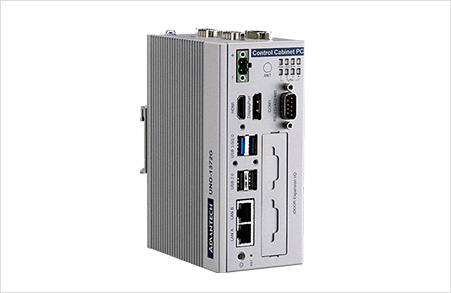

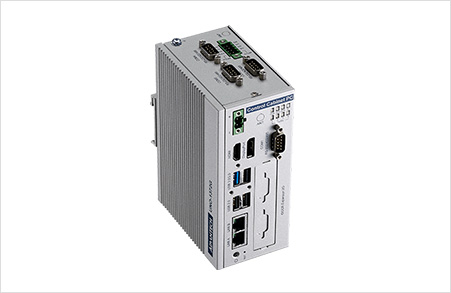

Part Number |
UNO-1372G-J021AE |
General |
|
Certifications |
CCC, CE, FCC, UL, BSMI |
Power Consumption |
19W(Typical) 35W(Max) |
Mounting |
DIN-rail |
OS Support |
Microsoft® Windows 7/8/10, WES7, AdvLinux |
Enclosure |
Aluminum Housing |
Power Requirement |
10~36 VDC |
Weight (Net) |
1.0kg (2.2lbs) |
Dimensions |
65 x 105 x 150mm (2.6" x 4.1" x 5.9") |
Form factor |
Small Size |
System Hardware |
|
Memory |
Built-in 4GB DDR3L 1333 MHz (Up to 8GB) |
Storage |
1 x mSATA shared with mPCIe slot, 1 x drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD) |
BIOS |
AMI UEFI 64Mbit Flash BIOS |
LED Indicators |
LEDs for Power, RTC battery, LAN (Active, Status), COM (Tx/Rx), HDD, Programmable LED |
Watchdog Timer |
Programmable 6 levels timer interval, from 15 to 255 sec |
Expansion |
2 Full-size mPCIe |
Processor |
Intel Celeron Quad Core J1900 2.0 GHz |
System Chip |
Integrated Intel SoC Chipset |
Ethernet |
Intel® i210-IT GbE, 802.1Qav, 802.1AS, 802.3az |
Graphics Engine |
Intel® HD Graphics |
Trusted Platform Module |
TPM2.0 |
I/O Interface |
|
Isolated Serial Ports |
4 x RS232/422/485, DB9, 50 ~ 115.2kbps (Isolation Protection 1500VDC) |
USB Port |
4 x USB Ports (3 x USB 2.0, 1 x USB 3.0 compliant) |
LAN Ports |
2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet |
Grounding Protection |
Chassis Grounding |
Isolated DI/O |
4-ch digital input (Default contact) 4-ch digital output (2500 VDC) |
Displays |
1 x DP, supports 2560 x 1440 @ 60Hz;1 x HDMI, supports 1920 x 1080 @ 60Hz |
Power Connector |
1x 2 Pins, Terminal Block |
Environment |
|
Ingress Protection |
IP40 |
Relative Humidity |
95% RH @ 40°C, non-condensing |
Shock Protection |
Operating, IEC 60068-2-27, 50G, half sine, 11ms |
Vibration Protection |
Operating, IEC 60068-2-64, 1Grms, random, 5 ~ 500Hz, 1 hr/axis |
Operating Temperature |
- 20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow (Industry SSD) |
Storage Temperature |
-40 ~ 85°C ( -40 ~ 185°F) |
