Part Number

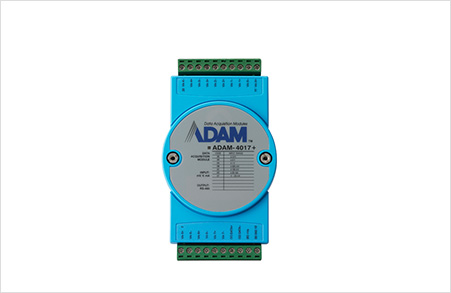

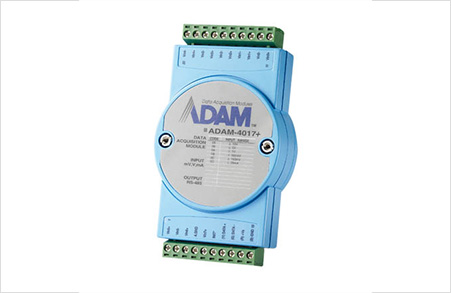

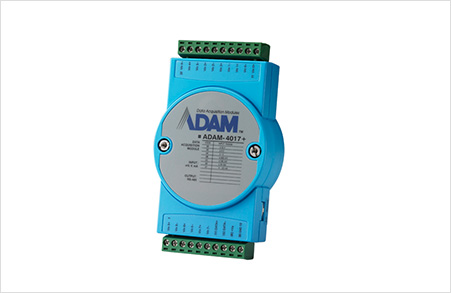

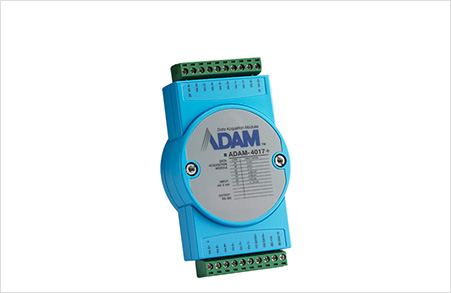

ADAM-4017+-CE

Display

LED Indicators

Power

Power Supply

Power Requirement

10~30 VDC

Analog Input

Channels

8 differential

Voltage Range

±150 mV ±500 mV ±1 V ±5 V ±10 V

Current Input

±20 mA, 4~20mA

Channel Independent Configuration

Yes

Sampling Rates

10 samples/second

Resolution

16-bit

Input Impedance

Voltage: 20 MOhm Current: 120 Ohm

Span Drift

±25 ppm/°C

Zero Drift

±6 µV/°C

CMR @ 50/60 Hz

120 dB

NMR @ 50/60 Hz

100 dB

General

Watchdog Timer

System (1.6 second) & Communication

Connector

2 x plug-in terminal block (#14~22 AWG)

Temperature (Operating)

-10~70 °C (14~158 °F)

Humidity

5~95 %RH

Temperature (Storage)

-25~85 °C (-13~185 °F)

Interface

RS-485

Isolation Protection

3000 VDC

Communication Protocol

ASCII command & Modbus/RTU

Communication Speed

Serial: From 1,200 to 115.2 k

Comm. Distance

Serial: 1.2 km

Data Flow Control

Yes
