Part Number

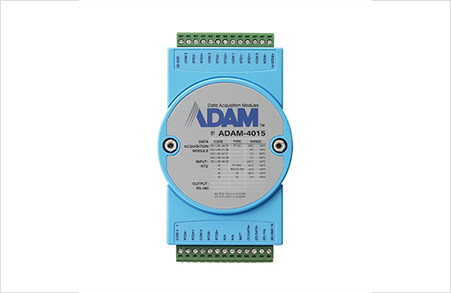

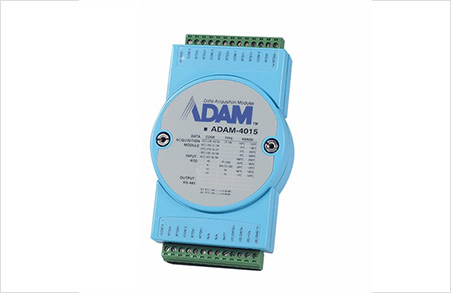

ADAM-4015-CE

Display

LED Indicators

Power

Power Supply

Power Requirement

10~30 VDC

Analog Input

Channels

6 (2 or 3-wired)

Direct Sensor Input

RTD (Pt, Balco, or Ni)

Burn-out Detection

Yes

Sampling Rates

10 samples/second

Resolution

16-bit

Input Impedance

10 MOhm

Span Drift

±25 ppm/°C

Zero Drift

±3 µV/°C

CMR @ 50/60 Hz

120 dB

NMR @ 50/60 Hz

100 dB

General

Watchdog Timer

System (1.6 second) & Communication

Connector

2 x plug-in terminal block (#14~28 AWG)

Temperature (Operating)

-10~70 °C (14~158 °F)

Humidity

5~95 %RH

Temperature (Storage)

-25~85 °C (-13~185 °F)

Interface

RS-485

Isolation Protection

3000 VDC

Communication Protocol

ASCII command & Modbus/RTU

Communication Speed

Serial: From 1,200 to 115.2 k

Comm. Distance

Serial: 1.2 km

Data Flow Control

Yes
