Part Number

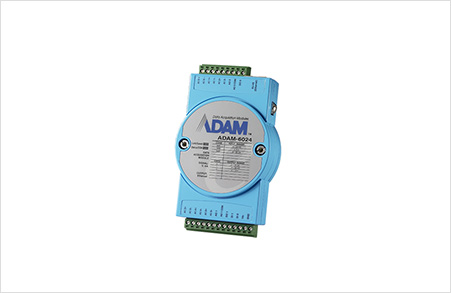

ADAM-6024-A1E

Display

LED Indicators

Status, Comm, Link, Speed

Power Supply

Power Requirement

10~30 VDC

Analog Input

Channel Independent Configuration

Yes

Sampling Rates

10 samples/second

Resolution

16-bit

Channels

6 differential

Voltage Range

±10 V

Current Input

0~20 mA 4~20 mA

Input Impedance

20 MOhm

Span Drift

±25 ppm/°C

Zero Drift

±6 µV/°C

Analog Output

Channels

2

Voltage Range

0~10 V

Current Output

0~20 mA 4~20 mA

General

Watchdog Timer

System (1.6 second) & Communication (programmable)

Temperature (Operating)

-10~50°C ( 14~122°F )

Humidity

20~95 %RH

Temperature (Storage)

-20 ~ 80° C (-4 ~176° F)

Interface

10/100Base-T(X)

Peer-to-Peer

Receiver Only

GCL

Receiver Only

Isolation Protection

2000 VDC

Communication Protocol

Modbus/TCP, TCP/IP, UDP, and HTTP

Communication Speed

Ethernet: 10/100Mbps

Comm. Distance

Ethernet: 100 m

Connector

1 x RJ-45 (LAN) & 2 x plug-in terminal block (I/O and power)

Digital Input

Input Voltage

Dry contact: Logic level 0: close to GND Logic level 1: open Wet contact: Logic level 0: 0~3 VDC Logic level 1: 10~30 VDC

Channels

2

Digital Output

Channels

2, open collector to 30V, 100 mA max. load

Power Dissipation

300 mW for each module
